SHELL181


4-Node Structural Shell

Valid Products: Pro | Premium | Enterprise | PrepPost | Solver | AS add-on

SHELL181 Element Description

SHELL181 is suitable for analyzing thin to moderately-thick shell structures. It is a four-node element with six degrees of freedom at each node: translations in the x, y, and z directions, and rotations about the x, y, and z-axes. (If the membrane option is used, the element has translational degrees of freedom only). The degenerate triangular option should only be used as filler elements in mesh generation.

The element is well-suited for linear, large rotation, and/or large strain nonlinear applications. Change in shell thickness is accounted for in nonlinear analyses. In the element domain, both full and reduced integration schemes are supported. SHELL181 accounts for follower (load stiffness) effects of distributed pressures.

The element can be used with layered applications for modeling composite shells or sandwich construction. The accuracy in modeling composite shells is governed by the first-order shear-deformation theory (usually referred to as Mindlin-Reissner shell theory).

The element formulation is based on logarithmic strain and true stress measures. The element kinematics allow for finite membrane strains (stretching). However, the curvature changes within a time increment are assumed to be small.

See SHELL181 for more information about this element.

SHELL181 Input Data

The following figure shows the geometry, node locations, normal direction, and multilayer construction for this element. The element is defined by shell section information and by four nodes (I, J, K, and L). A triangular-shaped element (not recommended) is formed by defining the same node number for nodes K and L.

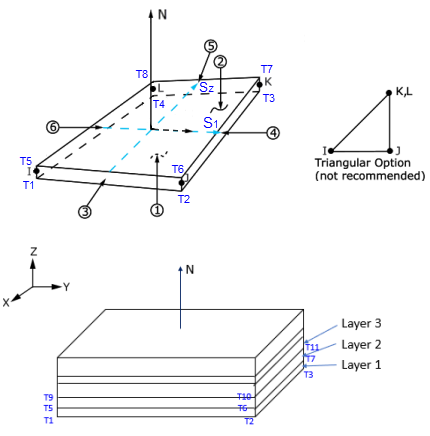

Figure 181.1: SHELL181 Geometry

SHELL181 Geometry

Single-Layer Definition

To define the thickness (and other information), use section definition, as follows:

SECTYPE,,SHELL
SECDATA,THICKNESS, ...

A single-layer shell section definition provides flexible options. For example, you can specify the number of integration points used and the material orientation.

Multilayer Definition

The shell section commands allow for layered shell definition. Options are available for specifying the thickness, material, orientation, and number of integration points through the thickness of the layers.

You can designate the number of integration points (1, 3, 5, 7, or 9) located through the thickness of each layer when using section input. When only one, the point is always located midway between the top and bottom surfaces. If three or more points, two points are located on the top and bottom surfaces respectively and the remaining points are distributed equal distance between the two points. The default number of integration points for each layer is three; however, when a single layer is defined and plasticity is present, the number of integration points is changed to a minimum of five during solution.

The following additional capabilities are available when defining shell layers:

The layers are stacked from the shell bottom surface in the direction of shell normal N. The shell normal N is aligned with the third element coordinate axis e3. The definition of e3 is described below.

Element and Layer Coordinate Systems

SHELL181 has one single element coordinate system (e1-e2-e3) at the center of element:

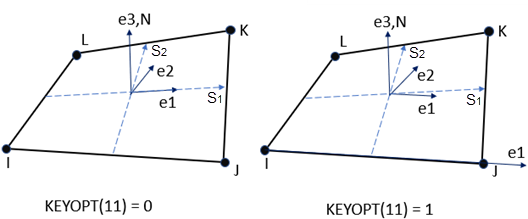

Figure 181.2: SHELL181 Default Element Coordinate System

SHELL181 Default Element Coordinate System

When KEYOPT(11) = 0, the default first element coordinate axis e1 is aligned with the first parametric direction S1 of the element at the center of the element. S1 and the second parametric direction S2 can be defined respectively as:

where the geometry is given as:

where:
= two isoparametric element coordinates
= shape functions associated with four element nodes
= global nodal coordinates of the four element nodes

If edges IJ and KL are parallel (rectangular or trapezoidal elements), the default orientation is the same as described in Coordinate Systems (where e1 is aligned with the IJ side). For elements with nonparallel edges IJ and JK, this default orientation represents the stress state better because the element uses a single point of quadrature (by default) in the element domain.

With KEYOPT(11) = 1, the default first element coordinate axis e1 is always directed from node I to node J.

The default third element coordinate axis e3 is normal to the element surface, and the default second element coordinate axis e2 is perpendicular to the e1 and e3 axes. Coordinate axes e3 and e2 are obtained respectively as follows:

As shown in the following figure, you can also define element orientation via ESYS. The user-defined element coordinate system (e1-e2-e3) is obtained by projecting a local coordinate system (x-y-z) to the shell surface. When KEYOPT(4) = 0, the user-defined third element coordinate axis e3 is always aligned with the default e3. When KEYOPT(4) = 1, the user-defined e3 is set to the opposite of default e3 if local coordinate axis z and default e3 are in the opposite directions.

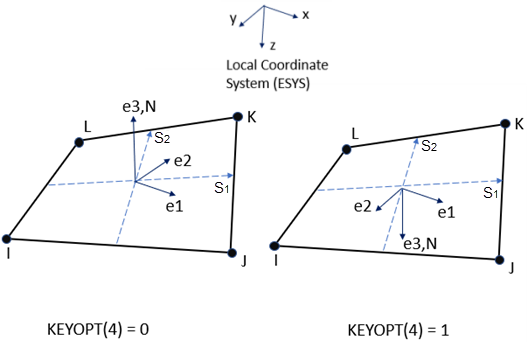

Figure 181.3: SHELL181 User-Defined Element Coordinate System

SHELL181 User-Defined Element Coordinate System

The layer coordinate systems (L1-L2-L3) as shown in the following figure are identical to the element coordinate system if no layer orientation angles are specified; otherwise, the layer coordinate system can be generated by rotating the element coordinate system about e3. (For the definition of layer orientation angles θ, see SECDATA.) Material properties are defined in the layer systems; therefore, the layer system is also called the material coordinate system.

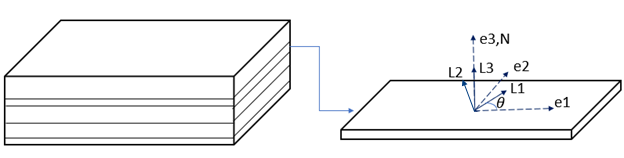

Figure 181.4: SHELL181 Layer Coordinate Systems

SHELL181 Layer Coordinate Systems

Other Input

The element supports degeneration into a triangular form; however, use of the triangular form is not recommended, except when used as mesh filler elements or with the membrane option (KEYOPT(1) = 1). The triangle form is generally more robust when using the membrane option with large deflections.

To evaluate stresses and strains on exterior surfaces, use KEYOPT(1) = 2. When used as overlaid elements on the faces of 3D elements, this option is similar to the surface stress option, but is more general and applicable to nonlinear analysis. The element used with this option provides no stiffness, mass, or load contributions. Use this option in single-layer shells only. Irrespective of other settings, SHELL181 provides stress and strain output at the center of the layer. When KEYOPT(1) = 2, the program sets the integration option KEYOPT(3) = 0.

SHELL181 uses a penalty method to relate the independent rotational degrees of freedom about the normal (to the shell surface) with the in-plane components of displacements. The program determines an appropriate penalty stiffness by default. A drill-stiffness factor can be specified via SECCONTROL. Default drill stiffness is calculated from linear section stiffness (integrated linear elastic material stiffness through the thickness). The default drill stiffness remains constant even when materials become nonlinear. For elements with softening materials, a smaller drill-stiffness scaling factor should be specified via SECCONTROL.

Element loads are described in Element Loading. Pressures can be input as surface loads on the element faces as shown by the circled numbers on Figure 181.1:  SHELL181 Geometry. Positive pressures act into the element. Because shell edge pressures are input on a per-unit-length basis, per-unit-area quantities must be multiplied by the shell thickness.

Temperatures can be input as element body loads at the corners of the outside faces of the element and at the corners of the interfaces between layers. The first corner temperature T1 defaults to TUNIF. If all other temperatures are unspecified, they default to T1. If KEYOPT(1) = 0 and if exactly NL+1 temperatures are input, one temperature is used for the four bottom corners of each layer, and the last temperature is used for the four top corner temperatures of the top layer. If KEYOPT(1) = 1 and if exactly NL temperatures are input, one temperature is used for the four corners of each layer. That is, T1 is used for T1, T2, T3, and T4; T2 (as input) is used for T5, T6, T7, and T8, etc. For any other input pattern, unspecified temperatures default to TUNIF.

Using KEYOPT(3), SHELL181 supports uniform reduced integration and full integration with incompatible modes. By default, this element uses the uniform reduced integration for performance reasons in nonlinear applications.

Using reduced integration with hourglass control creates some usage restrictions, although minimal. For example, to capture the in-plane bending of a cantilever or a stiffener (as shown in see Figure 181.5: SHELL181 Typical Bending Applications), a number of elements through the thickness direction is necessary. The performance gains achieved by using uniform reduced integration are significant enough to offset the need to use more elements. In relatively well-refined meshes, hourglassing issues are largely irrelevant.

When the reduced integration option is used, you can check the accuracy of the solution by comparing the total energy (SENE label in ETABLE) and the artificial energy (AENE label in ETABLE) introduced by hourglass control. If the ratio of artificial energy to total energy is less than 5%, the solution is generally acceptable. The total energy and artificial energy can also be monitored by using OUTPR,VENG in the solution phase.

Bilinear elements, when fully integrated, are too stiff in in-plane bending.SHELL181 uses the method of incompatible modes to enhance the accuracy in bending-dominated problems. This approach is also called "extra shapes" or "bubble" modes approach. SHELL181 uses the formulation that ensures satisfaction of the patch test (J. C. Simo and F. Armero, "Geometrically nonlinear enhanced strain mixed methods and the method of incompatible modes," IJNME, Vol. 33, pp. 1413-1449, 1992).

When including incompatible modes in the analysis, you must use full integration. KEYOPT(3) = 2 implies the inclusion of incompatible modes and the use of full (2x2) quadrature.

SHELL181, with KEYOPT(3) = 2 specified, does not have any spurious energy mechanisms. This specific form of SHELL181 is highly accurate, even with coarse meshes. Use KEYOPT(3) = 2 if you encounter any hourglass-related difficulties with the default options. KEYOPT(3) = 2 is also necessary if the mesh is coarse and in-plane bending of the elements dominate the response. We recommend this option with all layered applications.

KEYOPT(3) = 2 imposes the fewest usage restrictions. You can always choose this option. However, you can improve element performance by choosing the best option for your problem. Consider the problems illustrated in Figure 181.5: SHELL181 Typical Bending Applications

Figure 181.5: SHELL181 Typical Bending Applications

SHELL181 Typical Bending Applications

SHELL181 Typical Bending Applications


The cantilever beam and the beam cross-section to be modeled with shells are typical examples of in-plane bending-dominated problems. The use of KEYOPT(3) = 2 is the most effective choice in these circumstances. Reduced integration would require refined meshes. For example, reduced integration for the cantilever beam problem requires four elements through the thickness, whereas the full integration with incompatible modes only requires one element through the thickness.

For the stiffened shell, the most effective choice is to use KEYOPT(3) = 0 for the shell and KEYOPT(3) = 2 for the stiffener.

When KEYOPT(3) = 0 is specified, SHELL181 uses an hourglass control method for membrane and bending modes. By default, SHELL181 calculates the hourglass parameters for both metal and hyperelastic applications. To specify the hourglass-stiffness scaling factors, issue SECCONTROL.

When KEYOPT(5) = 1, the element uses an advanced formulation that incorporates initial curvature effects. The calculation for effective shell curvature change accounts for both shell-membrane and thickness strains. The formulation generally offers improved accuracy in curved shell structure simulations, especially when thickness strain is significant or the material anisotropy in the thickness direction cannot be ignored, or in thick shell structures with unbalanced laminate construction or with shell offsets. The initial curvature of each element is calculated from the nodal shell normals. The shell normal at each node is obtained by averaging the shell normals from the surrounding SHELL181 elements. A coarse or highly distorted shell mesh can lead to significant error in the recovered element curvature; therefore, this option should be used with a smooth, adequately refined mesh only. To ensure proper representation of the original mesh, a nodal normal is replaced by the element shell normal in the curvature calculation if the subtended angle between these two is greater than 25 degrees.

When KEYOPT(5) = 2, a simplified curved-shell formulation is adopted. Unlike the advanced curved-shell formulation (KEYOPT(5) =1), the curvature effects in the shell offset handling are ignored. The simplified formulation generally leads to more robust nonlinear convergence.

The curved-shell formulation is automatically disabled for excessively thick and curved structures with an r / t ratio below 5 / 6, where r is the radius of curvature measured at shell mid-plane and t is the total shell thickness.

SHELL181 includes the linear effects of transverse shear deformation. An assumed shear strain formulation of Bathe-Dvorkin is used to alleviate shear locking. The transverse shear stiffness of the element is a 2 x 2 matrix as shown below:

Transverse shear effects are not included in the normal material constitutive modeling for this element.

To define transverse shear stiffness values, issue SECCONTROL.

Transverse shear-correction factors k are calculated once at the start of the analysis for each section. The material properties used to evaluate the transverse shear correction factors are at the current reference temperature during solution. User-field variables and frequency are all set to zero when evaluating the material properties used to calculate the transverse shear correction factors.

For a single-layer shell with isotropic material, default transverse shear stiffnesses are:

where shear-correction factor k = 5/6, G = shear modulus, and h = thickness of the shell.

The bending stiffness is defined by either a standard or preintegrated shell section (SECTYPE,,SHELL or GENS, respectively). Further bending-stiffness scaling is available via a user-specified factor (BENSTIF on SECCONTROL). For a standard shell section, Mechanical APDL rebalances the element stresses to reflect the change in bending stiffness.

SHELL181 can be associated with linear elastic, elastoplastic, creep, or hyperelastic material properties. Only isotropic, anisotropic, and orthotropic linear elastic properties can be input for elasticity. The von Mises isotropic hardening plasticity models can be invoked with BISO (bilinear isotropic hardening), and NLISO (nonlinear isotropic hardening) options. The kinematic hardening plasticity models can be invoked with BKIN (bilinear kinematic hardening), and CHABOCHE (nonlinear kinematic hardening). Invoking plasticity assumes that the elastic properties are isotropic (that is, if orthotropic elasticity is used with plasticity, the program assumes the isotropic elastic modulus = EX and Poisson's ratio = NUXY).

Hyperelastic material properties (2, 3, 5, or 9 parameter Mooney-Rivlin material model, Neo-Hookean model, Polynomial form model, Arruda-Boyce model, and user-defined model) can be used with this element. Poisson's ratio is used to specify the compressibility of the material. If less than 0, Poisson's ratio is set to 0; if greater than or equal to 0.5, Poisson's ratio is set to 0.5 (fully incompressible).

Both isotropic and orthotropic thermal expansion coefficients can be input using MP,ALPX. When used with hyperelasticity, isotropic expansion is assumed.

Issue TREF to specify the global value of reference temperature. If MP,REFT is defined for the material number of the element, it is used for the element instead of the value specified via TREF. If MP,REFT is defined for the material number of the layer, however, it is used instead of either the global or element value.

With reduced integration and hourglass control (KEYOPT(3) = 0), low-frequency spurious modes can appear if the mass matrix used is not consistent with the quadrature rule. SHELL181 uses a projection scheme that effectively filters out the inertia contributions to the hourglass modes of the element. To be effective, use a consistent mass matrix (LUMPM,OFF). The lumped mass option (LUMPM,ON) can, however, be used with the full integration options (KEYOPT(3) = 2).

KEYOPT(8) = 2 stores midsurface results in the results file for single or multi-layer shell elements. If you use SHELL,MID, you will see these calculated values, rather than the average of the TOP and BOTTOM results. You should use this option to access these correct midsurface results (membrane results) for those analyses where averaging TOP and BOTTOM results is inappropriate; examples include midsurface stresses and strains with nonlinear material behavior, and midsurface results after mode combinations that involve squaring operations such as in spectrum analyses.

KEYOPT(9) = 1 reads initial thickness data from a user subroutine.

KEYOPT(10) = 1 outputs normal stress component Sz, where z is shell normal direction. The element uses a plane-stress formulation that always leads to zero thickness normal stress. With KEYOPT(10) = 1, Sz is independently recovered during the element solution output from the applied pressure load. The pressure must be applied directly to the shell, and not via surface elements (SURFnnn).

You can apply an initial stress state (INISTATE) to this element. For more information, see Initial State in the Advanced Analysis Guide.

The effects of pressure load stiffness are automatically included for this element. If an unsymmetric matrix is needed for pressure load stiffness effects, use NROPT,UNSYM.

A summary of the element input is given in "SHELL181 Input Summary". A general description of element input is given in Element Input.

SHELL181 Input Summary

Nodes

I, J, K, L

Degrees of Freedom

UX, UY, UZ, ROTX, ROTY, ROTZ if KEYOPT(1) = 0

UX, UY, UZ if KEYOPT(1) = 1

Material Properties
TB command: See Element Support for Material Models for this element.
MP command: EX, EY, EZ, (PRXY, PRYZ, PRXZ, or NUXY, NUYZ, NUXZ),
ALPX, ALPY, ALPZ (or CTEX, CTEY, CTEZ or THSX, THSY, THSZ),
DENS, GXY, GYZ, GXZ, ALPD
Specify BETD, ALPD, DMPR, or DMPS for the element (all layers) by issuing MAT to assign the material property set.
REFT can be specified once for the element, or it can be assigned on a per-layer basis. See the discussion in "SHELL181 Input Summary" for more information.
Surface Loads
Pressures --
face 1 (I-J-K-L) (bottom, in +N direction),
face 2 (I-J-K-L) (top, in -N direction),
face 3 (J-I), face 4 (K-J), face 5 (L-K), face 6 (I-L)
To define general surface loads (or surface tractions) on the faces, issue SFCONTROL.
Equivalent source surface flag --

MXWF (input via SF)

Body Loads
Temperatures --

For KEYOPT(1) = 0 (Bending and membrane stiffness):

T1, T2, T3, T4 (at bottom of layer 1), T5, T6, T7, T8 (between layers 1-2); similarly for between next layers, ending with temperatures at top of layer NL(4*(NL+1) maximum). Hence, for one-layer elements, 8 temperatures are used.

For KEYOPT(1) = 1 (Membrane stiffness only):

T1, T2, T3, T4 for layer 1, T5, T6, T7, T8 for layer 2, similarly for all layers (4*NL maximum). Hence, for one-layer elements, 4 temperatures are used.

Special Features
KEYOPT(1)

Element stiffness:

0 --

Bending and membrane stiffness (default)

1 --

Membrane stiffness only

2 --

Stress/strain evaluation only

KEYOPT(3)

Integration option:

0 --

Reduced integration with hourglass control (default)

2 --

Full integration with incompatible modes (not valid when KEYOPT(1) = 2)

KEYOPT(4)

Shell normal orientation option:

0 --

Calculated from element connectivity (default)

1 --

Controlled by the z coordinate direction of a local coordinate system

KEYOPT(5)

Curved shell formulation:

0 --

Standard shell formulation (default)

1 --

Advanced curved-shell formation

2 --

Simplified curved-shell formation

KEYOPT(8)

Specify layer data storage:

0 --

For multi-layer elements, store data for bottom of bottom layer and top of top layer. For single-layer elements, store data for TOP and BOTTOM. (Default)

1 --

Store data for TOP and BOTTOM, for all layers (multi-layer elements)


Note:  Volume of data may be excessive.


2 --

Store data for TOP, BOTTOM, and MID for all layers; applies to single- and multi-layer elements

KEYOPT(9)

User thickness option:

0 --

No user subroutine to provide initial thickness (default)

1 --

Read initial thickness data from user-defined subroutine UTHICK

See the Guide to User-Programmable Features in the Programmer's Reference for user-defined subroutines

KEYOPT(10)

Thickness normal stress (Sz) output option:

0 --

Sz not modified (default, Sz = 0)

1 --

Recover and output Sz from applied pressure load

KEYOPT(11)

Default element x axis (x0) orientation:

0 --

First parametric direction at the element centroid (default)

1 --

Pointing from element node I to element node J

SHELL181 Output Data

The solution output associated with the element is in two forms:

Several items are illustrated in Figure 181.6: SHELL181 Stress Output.

KEYOPT(8) controls the amount of data output to the results file for processing via LAYER. Interlaminar shear stress is available as SYZ and SXZ evaluated at the layer interfaces. KEYOPT(8) must be set to either 1 or 2 to output these stresses in POST1. A general description of solution output is given in Solution Output. See the Basic Analysis Guide for ways to review results.

The element stress resultants (N11, M11, Q13, etc.) are parallel to the element coordinate system, as are the membrane strains and curvatures of the element. Such generalized strains are available through the SMISC option at the element centroid only. The transverse shear forces Q13, Q23 are available only in resultant form: that is, use SMISC,7 (or 8). Likewise, the transverse shear strains, γ13 and γ23, are constant through the thickness and are only available as SMISC items (SMISC,15 and SMISC,16, respectively).

The program calculates moments (M11, M22, M12) with respect to the shell reference plane. By default, Mechanical APDL adopts the shell midplane as the reference plane. To offset the reference plane to any other specified location, issue SECOFFSET. When there is a nonzero offset (L) from the reference plane to the midplane, moments with respect to the midplane () can be recovered from stress resultants with respect to the reference plane as follows:

SHELL181 does not support extensive basic element printout. POST1 provides more comprehensive output processing tools; therefore, Ansys, Inc. suggests using OUTRES to ensure that the required results are stored in the database.

SHELL181 allows for transformation of stresses and strains to other coordinate systems in postprocessing (RSYS). By default, the element stresses and strains are displayed or listed in the global Cartesian coordinate system.

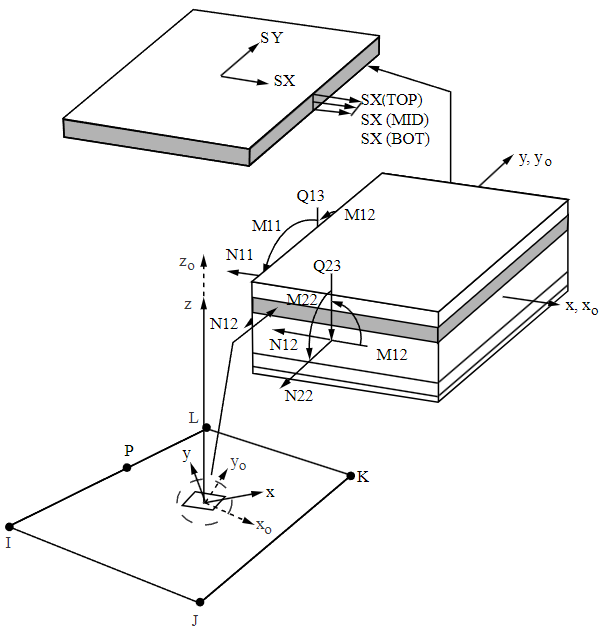

Figure 181.6: SHELL181 Stress Output

SHELL181 Stress Output
x0 = Element x axis if element orientation (ESYS) is not specified. (See KEYOPT(11).)
x = Element x axis if element orientation is specified.

The Element Output Definitions table uses the following notation:

A colon (:) in the Name column indicates that the item can be accessed by the Component Name method (ETABLE, ESOL). The O column indicates the availability of the items in the file jobname.out. The R column indicates the availability of the items in the results file.

In either the O or R columns, “Y” indicates that the item is always available, a letter or number refers to a table footnote that describes when the item is conditionally available, and “-” indicates that the item is not available.

Table 181.1: SHELL181 Element Output Definitions

NameDefinitionOR
ELElement number and nameYY
NODESNodes - I, J, K, L-Y
MATMaterial number-Y
THICKAverage thickness-Y
VOLU:Volume-Y
XC, YC, ZCLocation where results are reported- 4
PRESPressures P1 at nodes I, J, K, L; P2 at I, J, K, L; P3 at J,I; P4 at K,J; P5 at L,K; P6 at I,L-Y
TEMPT1, T2, T3, T4 at bottom of layer 1, T5, T6, T7, T8 between layers 1-2, similarly for between next layers, ending with temperatures at top of layer NL(4*(NL+1) maximum)-Y
LOCTOP, MID, BOT, or integration point location- 1
S:X, Y, Z, XY, YZ, XZStresses 3 1
S:1, 2, 3Principal stresses- 1
S:INTStress intensity- 1
S:EQVEquivalent stress- 1
EPEL:X, Y, Z, XYElastic strains 3 1
EPEL:EQVEquivalent elastic strains [7]- 1
EPTH:X, Y, Z, XYThermal strains 3 1
EPTH:EQVEquivalent thermal strains [7]- 1
EPPL:X, Y, Z, XYAverage plastic strains 3 2
EPPL:EQVEquivalent plastic strains [7]- 2
EPCR:X, Y, Z, XYAverage creep strains 3 2
EPCR:EQVEquivalent creep strains [7]- 2
EPTO:X, Y, Z, XYTotal mechanical strains (EPEL + EPPL + EPCR) 3 -
EPTO:EQVTotal equivalent mechanical strains (EPEL + EPPL + EPCR)--
NL:SEPLPlastic yield stress- 2
NL:EPEQAccumulated equivalent plastic strain- 2
NL:CREQAccumulated equivalent creep strain- 2
NL:SRATPlastic yielding (1 = actively yielding, 0 = not yielding)- 2
NL:PLWKPlastic work/volume- 2
NL:HPRESHydrostatic pressure- 2
SEND:ELASTIC, PLASTIC, CREEP, ENTOStrain energy densities- 2
N11, N22, N12In-plane forces (per unit length)-Y
M11, M22, M12Out-of-plane moments (per unit length)- 8
Q13, Q23Transverse shear forces (per unit length)- 8
ε11, ε22, ε12 Membrane strains-Y
k11, k22, k12 Curvatures- 8
γ13, γ23 Transverse shear strains- 8
LOCI:X, Y, ZIntegration point locations- 5
SVAR:1, 2, ... , NState variables- 6
ILSXZ SXZ interlaminar shear stress -Y
ILSYZ SYZ interlaminar shear stress -Y
ILSUM Magnitude of the interlaminar shear stress vector -Y
ILANG Angle of interlaminar shear stress vector (measured from the element x axis toward the element y axis in degrees) -Y
Sm: 11, 22, 12Membrane stresses-Y
Sb: 11, 22, 12Bending stresses-Y
Sp: 11, 22, 12Peak stresses-Y
St: 13, 23Averaged transverse shear stresses-Y

  1. The following stress solution repeats for top, middle, and bottom surfaces.

  2. Nonlinear solution output for top, middle, and bottom surfaces, if the element has a nonlinear material, or if large-deflection effects are enabled (NLGEOM,ON) for SEND.

  3. Stresses, total strains, plastic strains, elastic strains, creep strains, and thermal strains in the element coordinate system are available for output (at all section points through thickness). If layers are in use, the results are in the layer coordinate system.

  4. Available only at centroid as a *GET item.

  5. Available only if OUTRES,LOCI is used.

  6. Available only if the UserMat subroutine and TB,STATE are used.

  7. The equivalent strains use an effective Poisson's ratio: for elastic and thermal this value is set by the user (MP,PRXY); for plastic and creep this value is set at 0.5.

  8. Not available for KEYOPT(1) = 1 (membrane only) or KEYOPT(1) = 2 (stress/strain evaluation only).

Table 181.2: SHELL181 Item and Sequence Numbers lists output available through ETABLE using the Sequence Number method. See Creating an Element Table and The Item and Sequence Number Table in this reference for more information. The following notation is used in Table 181.2: SHELL181 Item and Sequence Numbers:

Name

output quantity as defined in the Table 181.1: SHELL181 Element Output Definitions

Item

predetermined Item label for ETABLE

E

sequence number for single-valued or constant element data

I,J,K,L

sequence number for data at nodes I, J, K, L

Table 181.2: SHELL181 Item and Sequence Numbers

Output Quantity Name ETABLE and ESOL Command Input
Item E I J K L
N11SMISC1----
N22SMISC2----
N12SMISC3----
M11SMISC4----
M22SMISC5----
M12SMISC6----
Q13SMISC7----
Q23SMISC8----
ε11 SMISC9----
ε22 SMISC10----
ε12 SMISC11----
k11 SMISC12----
k22 SMISC13----
k12 SMISC14----
γ13 SMISC15----
γ23 SMISC16----
P1SMISC-18192021
P2SMISC-22232425
P3SMISC-2726--
P4SMISC--2928-
P5SMISC---3130
P6SMISC-32--33
Sm: 11SMISC34----
Sm: 22SMISC35----
Sm: 12SMISC36----
Sb: 11SMISC37----
Sb: 22SMISC38----
Sb: 12SMISC39----
Sp: 11 (at shell bottom)SMISC40----
Sp: 22 (at shell bottom)SMISC41----
Sp: 12 (at shell bottom)SMISC42----
Sp: 11 (at shell top)SMISC43----
Sp: 22 (at shell top)SMISC44----
Sp: 12 (at shell top)SMISC45----
St: 13SMISC46----
St: 23SMISC47----
THICKNMISC1----

Output Quantity Name ETABLE and ESOL Command Input
Item Bottom of Layer i Top of Layer i
ILSXZ SMISC8 * (i - 1) + 518 * (i - 1) + 52
ILSYZSMISC8 * (i - 1) + 538 * (i - 1) + 54
ILSUMSMISC8 * (i - 1) + 558 * (i - 1) + 56
ILANGSMISC8 * (i - 1) + 578 * (i - 1) + 58

SHELL181 Assumptions and Restrictions

  • Ansys, Inc. recommends against using this element in triangular form, except as a filler element. Avoid triangular form especially in areas with high stress gradients.

  • Zero-area elements are not allowed. (Zero-area elements occur most often whenever the elements are numbered improperly.)

  • Zero thickness elements or elements tapering down to a zero thickness at any corner are not allowed (but zero thickness layers are allowed).

  • If multiple load steps are used, the number of layers cannot change between load steps.

  • When the element is associated with preintegrated shell sections (SECTYPE,,GENS), additional restrictions apply. For more information, see Considerations for Using Preintegrated Shell Sections in the Structural Analysis Guide.

  • If reduced integration is used (KEYOPT(3) = 0) SHELL181 ignores rotary inertia effects when an unbalanced laminate construction is used, and all inertial effects are assumed to be in the nodal plane (that is, an unbalanced laminate construction and offsets have no effect on the mass properties of the element).

  • For most composite analyses, Ansys, Inc. recommends setting KEYOPT(3) = 2 (necessary to capture the stress gradients).

  • No slippage is assumed between the element layers. Shear deflections are included in the element; however, normals to the center plane before deformation are assumed to remain straight after deformation.

  • Transverse shear stiffness of the shell section is estimated by an energy equivalence procedure (of the generalized section forces and strains vs. the material point stresses and strains). The accuracy of this calculation may be adversely affected if the ratio of material stiffnesses (Young's moduli) between adjacent layers is very high.

  • The calculation of interlaminar shear stresses is based on simplifying assumptions of unidirectional, uncoupled bending in each direction. If accurate edge interlaminar shear stresses are required, shell-to-solid submodeling should be used.

  • The section definition permits use of hyperelastic material models and elastoplastic material models in laminate definition; however, the accuracy of the solution is primarily governed by fundamental assumptions of shell theory. The applicability of shell theory in such cases is best understood by using a comparable solid model.

  • The layer orientation angle has no effect if the material of the layer is hyperelastic.

  • Before using this element in a simulation containing curved thick shell structures with unbalanced laminate construction or shell offsets, validate the usage via full 3D modeling with a solid element in a simpler representative model. The element may underestimate the curved thick shell stiffness, particularly when the offset is large and the structure is under torsional load. Consider using curved-shell formulation (KEYOPT(5) = 1).

  • The through-thickness stress, SZ, is always zero.

  • This element works best with the full Newton-Raphson solution scheme (NROPT,FULL,,ON).

  • Stress stiffening is always included in geometrically nonlinear analyses (NLGEOM,ON). Prestress effects can be activated via PSTRES.

  • In a nonlinear analysis, the solution process terminates if the thickness at any integration point that was defined with a nonzero thickness vanishes (within a small numerical tolerance).

  • If a shell section has only one layer and the number of section integration points is equal to one, or if KEYOPT(1) = 1, then the shell has no bending stiffness, a condition that can result in solver and convergence problems.

SHELL181 Product Restrictions

When used in the product(s) listed below, the stated product-specific restrictions apply to this element in addition to the general assumptions and restrictions given in the previous section.

Ansys Mechanical Pro  —

  • Birth and death is not available.

  • Initial state is not available.

  • Section definition for layered shells in not available.
