17.6.2.10. Moment

This boundary condition distributes a moment "about" (the vector of) an axis across 1) one or more flat or curved faces, 2) about one or more edges or vertices, or 3) one or more element faces (3D only) or nodes. Use the right-hand rule to determine the direction of the rotation.

A Moment is classified as a remote boundary condition. Refer to the Remote Boundary Conditions section for a listing of all remote boundary conditions and their characteristics.

This page includes the following sections:

Analysis Types

Moment is available for the following analysis types:
Dimensional Types

The supported dimensional types for the Moment boundary condition include:

  • 3D Simulation

  • 2D Simulation

Geometry Types

The supported geometry types for the Moment boundary condition include:

  • Solid

  • Surface/Shell

  • Wire Body/Line Body/Beam

Note:  Face and edge selections for the Moment load can span multiple parts, however, multiple vertex selections must be of the same part type (solid, 3D surface or line bodies) or the selection is ignored.

Topology Selection Options

The supported topology selection options for Moment include:

  • Face: Supported for 3D only. If a face enlarges (for example, due to a change in parameters), the total load applied to the face remains constant, but the load per unit area decreases.

  • Edge

  • Vertex. This boundary condition cannot be applied to a vertex scoped to an end release.

  • Node

  • Element Face: Supported for 3D only.

Applying Moment to a Straight Edge

If you apply a Moment to a straight edge (with colinear nodes) of a deformable surface body or a solid body, the application applies the load to the edge as well as the neighboring nodes of the element faces of the deformable surface body or the solid body, respectively. This transfers the rotations of the pilot node (of the Remote Point) to the surface or solid body.

Exception: If you scope a remote load to a deformable beam, the application internally changes the setting of the Behavior property to Rigid and prompts you with a warning.

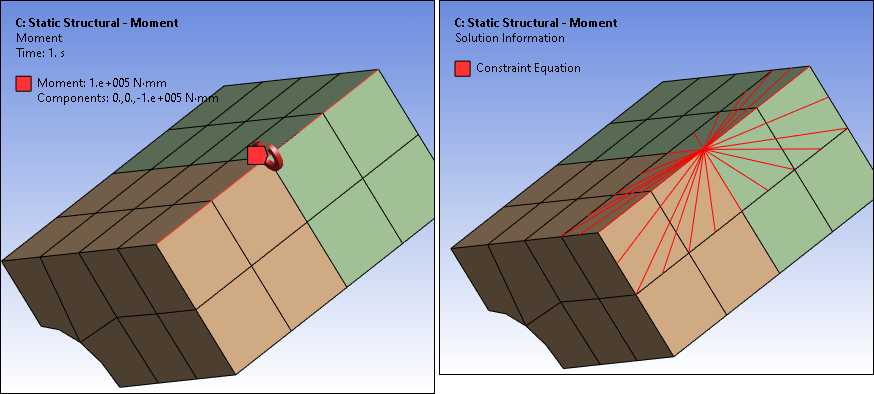

The following example shows how the application applies a Moment, scoped to a straight edge, to the neighboring element face nodes. In this example, the imbalance of constraint equations created on the blocks might result in unwanted non-zero moment reactions. You can minimize this by using either a lower order mesh or a coarser higher order mesh. For more information, see the Surface-Based Constraints section of the Mechanical APDL Contact Technology Guide.

Define By Options

The supported Define By options for the Moment boundary condition include:

  • Vector. While loads are associative with geometry changes, load directions are not.

    The vector load definition displays in the Annotation legend with the label Components. The Magnitude and Direction entries, in any combination or sequence, define these displayed values. These are the values sent to the solver.

  • Vector: Real - Imaginary: Supported for Harmonic Response analysis only.

  • Components

  • Components: Real - Imaginary: Supported for Harmonic Response analysis only.

Magnitude Options

The supported Magnitude options for Moment include the following:

  • Constant

  • Tabular (Time Varying)

  • Tabular (Step Varying): Supported for Static Structural analysis only.

  • Tabular (Frequency Varying): Supported for Harmonic Response analysis only. By default, at least two frequency entries are required when defining a frequency dependent tabular load.

  • Tabular (Harmonic Index Varying): Supported for Harmonic Response (Full) analysis only when a Cyclic Region is defined. By default, at least two harmonic index entries are required when defining a Harmonic Index dependent tabular load.

  • Tabular (Sector Number): Supported for Harmonic Response (Full) analysis only when a Cyclic Region is defined. By default, at least two entries are required to define a dependent tabular load.

  • Function (Time Varying)

Applying a Moment Boundary Condition

To apply a Moment:

  1. Select the Moment option from the Environment Context tab. Alternatively, right-click the Environment tree object or in the Geometry window and select Insert>Moment.

  2. Define the Scoping Method as either Geometry Selection, Named Selection, or Remote Point and then specify the geometry.

    Note:  When specifying the Scoping Method, faces and edges can be scoped to either the geometry where the load is to be applied (Geometry Selection), to a Named Selection, or to a Remote Point. Vertices cannot be scoped to Remote Point.

    Tip:  For a project where none of the analyses have been solved, automatic Remote Point creation is available in Harmonic Response or Transient Structural analyses that use a linked Modal system to implement the Mode Superposition (MSUP) solver method. To use this feature:

    • Select a supported topology (geometric or mesh entity) on your model, and

    • Insert a Moment load.

    The application automatically creates a corresponding Remote Point for the specified load and scopes the load to that Remote Point. Automatic Remote Point creation improves processing performance by eliminating the need to create internal elements for the load.

  3. Select the method used to define the Moment: Vector (default), Vector: Real - Imaginary, Components, or Components: Real - Imaginary.

  4. Define the Magnitude, Coordinate System directional loading, and/or Direction of the load based on the above selections.

    Note:

    • If you scope this load using the Element Face or Node selection options, you must use either of these options to properly specify the Direction property. That is, select the Direction property field (Click to Define), make sure that either the Element Face or the Node selection option is active, and then define the desired direction.

    • The Direction property is not associative and does not remain joined to the entity(s) selected for its specification. Therefore, this direction is not affected by geometry updates, part transformation, or the Configure tool (for joints).

  5. For Harmonic analyses, specify a Phase Angle as needed.

  6. Select the Behavior of the geometry.

  7. As needed, enter a Pinball Region value. The default value is All.

  8. If you are performing a Harmonic MSUP analysis that is linked to upstream system, you can set the Loading Application property to either Load Vector (default) or Table. This property selection enables you to specify between applying the load using load vectors or tables in the harmonic analysis. The option is not available if you scope the load to a Remote Point or a vertex.

Note:  Because a Moment is a remote boundary condition, it can make use of Remote Points that were either specifically defined or created internally by the application. As a visual check, you can display connection lines between your scoping and the Remote Point by selecting the Remote Point Connections option of the Style group (Display tab).

Details Pane Properties

The selections available in the Details pane are described below.

CategoryProperties/Options/Description
Scope Scoping Method: Options include:

  • Geometry Selection: Default setting, indicating that the boundary condition is applied to a geometry or geometries, which are chosen using a graphical selection tool.

    • Geometry: Visible when the Scoping Method is set to Geometry Selection. Displays the type of geometry (Body, Face, etc.) and the number of geometric entities (for example: 1 Body, 2 Edges) to which the boundary has been applied using the selection tools.

  • Named Selection: Indicates that the geometry selection is defined by a Named Selection.

    • Named Selection: Visible when the Scoping Method is set to Named Selection. This field provides a drop-down list of available user-defined Named Selections.

  • Remote Point

    • Remote Point: Visible when the Scoping Method is set to Remote Point. This field provides a drop-down list of available user-defined Remote Points.

Definition Type: Read-only field that displays boundary condition type - Moment.

Define By (3D Only): Options include:

  • Vector: A magnitude and direction (based on selected geometry). Requires the specification of the following inputs:

  • Vector: Real - Imaginary (Harmonic analysis only): Real and imaginary magnitude and direction (based on selected geometry). Requires the specification of the following inputs:

    • Magnitude - Real

    • Magnitude - Imaginary

    • Direction

Note:  If you scope this load using the Element Face or Node selection options, you must use either of these options to properly specify the Direction property. That is, select the Direction property field (Click to Define), make sure that either the Element Face or the Node selection option is active, and then define the desired direction.

  • Components: Option to define the loading type as Components (in the Global Coordinate System or local coordinate system, if applied). Requires the specification of at least one of the following inputs:

    • Coordinate System: Drop-down list of available coordinate systems. Global Coordinate System is the default.

    • X Component: Defines magnitude in the X direction.

    • Y Component: Defines magnitude in the Y direction.

    • Z Component: Defines magnitude in the Z direction.

    • X Phase Angle (Harmonic analysis only)

    • Y Phase Angle (Harmonic analysis only)

    • Z Phase Angle (Harmonic analysis only)

  • Components: Real - Imaginary (Harmonic analysis only): Option to define the loading type as real and imaginary components (in the Global Coordinate System or local coordinate system, if applied). Requires the specification of at least one of the following inputs:

    • X Component - Real

    • X Component - Imaginary

    • Y Component - Real

    • Y Component - Imaginary

    • Z Component - Real

    • Z Component - Imaginary

Magnitude (2D Only)

Suppressed: Include (No - default) or exclude (Yes) the boundary condition.

Non-Cyclic Loading Type: This property is available for Full Harmonic analysis when Cyclic Symmetry is present in the model. Options include:

  • No (default): The loading is purely cyclic. That is, the load applied to the base sector is applied to each and every sector.

  • Harmonic Index: The non-cyclic loading can be specified for one or more harmonic indices. This is also known as "engine-order loading" (or traveling wave excitation). A Harmonic Index entry is required.

  • Sector Number: This property enables you to select the desired Sector onto which you apply the non-cyclic load.

Important:  When you specify the load as Tabular, the Independent Variable property displays and is set to Harmonic Index by default. The Harmonic Index property is hidden as their values are entered in the table.

Harmonic Index: This property displays when the Non-Cyclic Loading Type property is set to Harmonic Index. Where NS is Number of Sectors, enter a value from:

1 to NS/2; if NS is even.
1 to (NS-1)/2; if NS is odd.

Sector Number: This property displays when the Non-Cyclic Loading Type property is set to Sector Number. You use this property to specify the desired sector onto which you want to apply the non-cyclic load. If you choose Tabular for the Magnitude property, you can then set the Independent Variable property to Sector Number and then specify your loading using the Tabular Data window.

Behavior: This option dictates the behavior of the attached geometry. If the Scope Method property is set to Remote Point, the boundary condition will then assume the Behavior defined in the referenced Remote Point as well as other related properties. Options include:

  • Rigid: Does not allow the scoped geometry to deform.

  • Deformable: Allows the scoped geometry to deform.

  • Coupled: Allows the scoped geometry to have the same DOF solution on its underlying nodes as the Remote Point location.

  • Beam: This option specifies a connection from the remote load to the model using linear massless beam elements. It is not a valid option for a Modal Superposition Harmonic Response analysis unless a Remote Point references the load.

Material: This property is available when the Behavior property is set to Beam. Select a material to define material properties for the beams used in the connection. Density is excluded from the material definition.

Radius: This property is available when the Behavior property is set to Beam. Specify a radius to define the cross-section dimension of the circular beam used for the connection.

Step Controls (Visible for Harmonic Response analysis with multiple load steps defined)

Step Varying: Options include No (default) and Yes. When you select No, the Remote Load is applicable at all defined steps. When set to Yes, only the load step selected in either the RPM Selection or Step Selection properties described below is applicable.

RPM Selection: This property displays when the Multiple Step Type property is set to RPM. Specify a Step Selection value from the values available in the RPM Value property of the Analysis Settings object to use for the Remote Load.

Step Selection: This property displays when the Multiple Step Type property of the Analysis Settings object is set to Load Step. Specify a Step Selection value from the values available in the Load Step Value property of the Analysis Settings object to use for the Remote Load.

Advanced

Pinball Region

Loading Application (linked MSUP Harmonic analysis only): Options include Load Vector (default) and Table. Using the Load Vector option, the scale factor specified through load magnitude is applied to the load vector in MSUP Harmonic analysis. Using the Table option, the load magnitude is specified in tabular data format and is directly applied to the selected scoping in the MSUP Harmonic analysis.

Note:  The option is not available if you scope the load to a Remote Point or a vertex.

API Reference

For specific scripting information, see the Moment section of the ACT API Reference Guide.
