Connecting properties such as the base curve and action body, the location of the action marker are defined in the PTCV creation dialog as shown in the figure and table below.

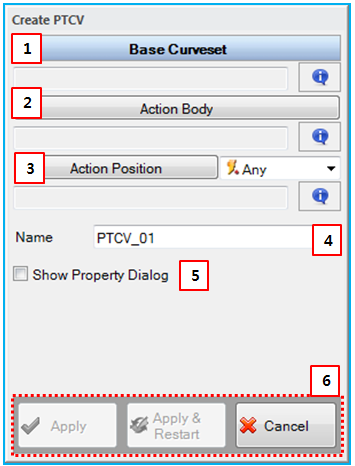

Figure 5.80: Description of parameters in the PTCV creation dialog
| Parameter | Description |
| 1. Base Curveset | Use to set a curveset on the base body using the General Picker. |
| 2. Action Body | Use to set the action body using the General Picker. |
| 3. Action Position | Use to set the location of the constrained point on the action body using the Point Picker. This defines the position of the action marker and the point is constrained to lie on the curve. |
| 4. Name | Use to set the name of the PTCV. |
| 5. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 6. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
