Hexa Mesh Generation for a Sphere Cube Geometry

In this tutorial, you will employ an Ogrid to fit the topology of the region between a cube and a sphere. The Ogrid forms a topological bridge between the dissimilar topologies and provides excellent element quality.

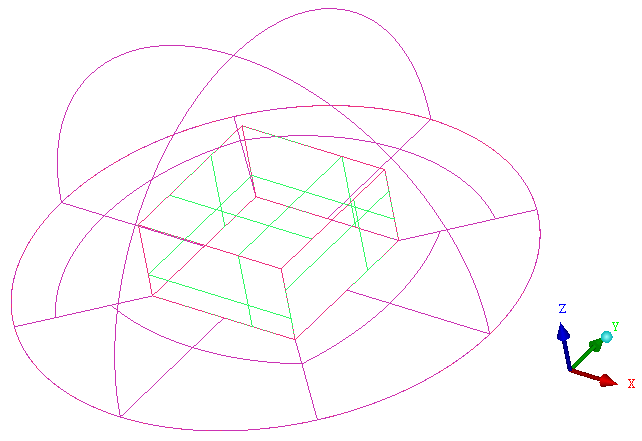

Figure 65: Sphere Cube Geometry

Sphere Cube Geometry

This tutorial demonstrates how to do the following:

  • Prepare the geometry.

  • Create Initial Blocking.

  • Associate the Blocking to the Geometry.

  • Create the Ogrid.

  • Fit the Ogrid using prescribed points.

  • Generate the mesh.

  • View scan planes.

  • Verify and save the mesh.
