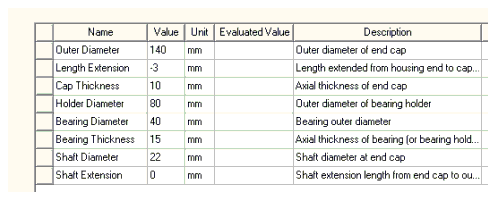

Name

Description

Notes

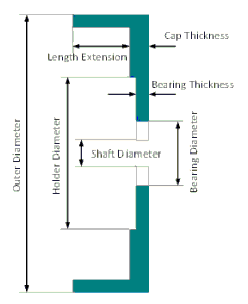

Outer Diameter

Outer diameter of end cap

Cap Outer Diameter ³ Housing Outer Diameter

Length Extension

Length extended from housing end to cap inner surface, < 0 for rabbet length

Cap Thickness

Axial thickness of end cap

Cap Thickness > 0

Holder Diameter

Outer diameter of bearing holder

Holder Diameter > 0

Bearing Diameter

Bearing outer diameter

Bearing Diameter < Holder Diameter

Bearing Thickness

Axial thickness of bearing (or bearing holder)

Bearing Thickness > 0

Shaft Diameter

Shaft diameter at end cap

Shaft Diameter < Bearing Diameter

Shaft Extension

Shaft extension length from end cap to outside for torque output or fan installation

Shaft Extension ³ 0
