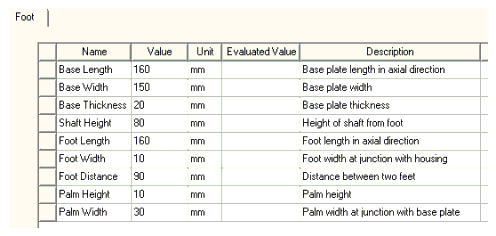

Name

Description

Notes

Base Length

Base plate length in axial direction

Base Length > 0

Base Width

Base plate width

Base Width > 0

Base Thickness

Base plate thickness

Base Thickness > 0

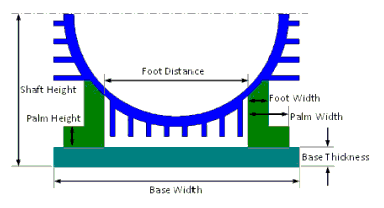

Shaft Height

Height of shaft from foot

Shaft Height > Base Thickness

Foot Length

Foot length in axial direction

0 < Foot Length < Base Length

Foot Width

Foot width at junction with housing

Foot Width > 0

Foot Distance

Distance between two feet

0 < Foot Distance < Base Width

Palm Height

Palm height

0 < Palm Height < (Shaft Height - Base Thickness)

Palm Width

Palm width at junction with base plate

Palm Width £ (Base Width - Foot Distance)/2

Palm Width ³ Foot Width
