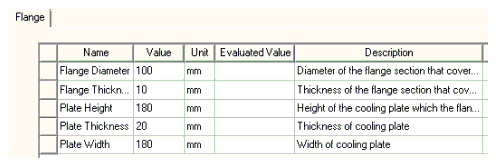

Name

Description

Notes

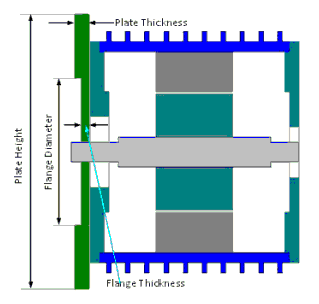

Flange Diameter

Diameter of the flange section that covers the front bearing

Flange Diameter > 0

Flange Thickness

Thickness of the flange section that covers the front bearing

Flange Thickness > 0

Plate Height

Height of the cooling plate which the flange mounts on

Plate Height > Flange Diameter

Plate Thickness

Thickness of cooling plate

Plate Thickness > Flange Thickness

Plate Width

Width of cooling plate

Plate Width > 0
