Housing Fin Data

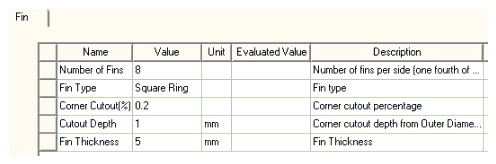

You can specify the following housing Fin properties:


Name

Description

Notes

Number of Fins

Number of fins per side (one fourth of total fins)

Number of Fins > 0

Fin Type

Fin type

Available types:

  • 1-Radial Round
  • 2-Radial Square
  • 3-Parallel Round
  • 4-Parallel Square
  • 5-Square Ring
  • 6-Servo Ring.

Default: Radial Round (Types 5 & 6 are disabled if Number of Fins = 1).

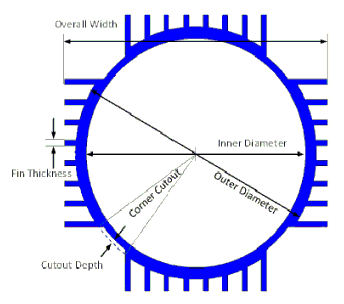

Corner Cutout (%)

Corner cutout percentage

0 £ Corner Cutout < 1

Cutout Depth

Corner cutout depth from Outer Diameter, or Fin Extension for Fin Type 5

Cutout Depth ³ 0

Fin Thickness

Fin Thickness

Fin Thickness > 0

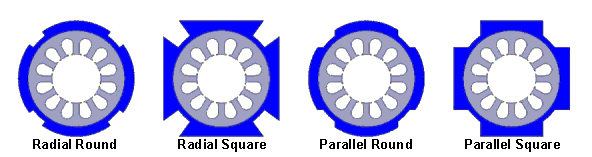

Fin Types when Number of fins = 1:

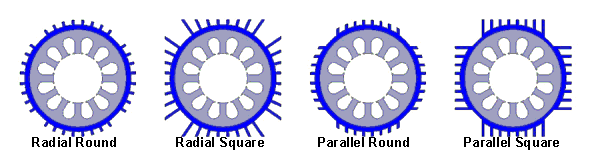

Fin types when number of fins = 2 or greater:
