Housing Duct Data

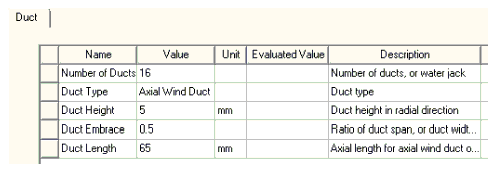

You can specify the following housing Duct properties:
|
Name |
Description |
Notes |
|
Number of Ducts |
Number of ducts, or water jackets |
Number of Ducts > 0 |
|
Duct Type |
Duct type |

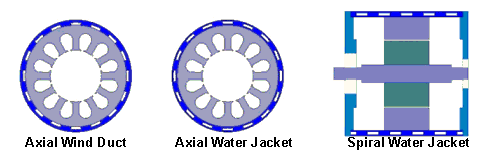

Available types:
Default: Axial Wind Duct. |
|
Duct Height |
Duct height in radial direction |
0 < Duct Height < Housing Thickness (half of the difference between the housing and stator outer diameters) |
|
Duct Embrace |
Ratio of duct span, or duct width, to duct pitch with uniform distribution |
0 < Duct Embrace < 1 |
|
Duct Length |
Axial length for axial wind duct only |
0 < Duct Length < Housing Length |
