Housing Data

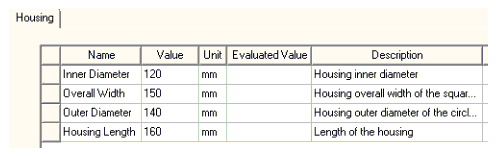

You can specify the following Housing properties:

Name	Description	Notes
Inner Diameter	Housing inner diameter	Inner Diameter > 0
Outer Diameter	Housing outer diameter of the circle profile	Outer Diameter > Inner Diameter
Overall Width	Housing overall width of the square profile	Overall Width > Inner Diameter
Housing Length	Length of the housing	Housing Length > 0
