CAD Integration Functionality
- WB Update Project
- WB Update All Design Points
- DX analysis
- Parametric Analysis with DSO
- Animation
- Geometry
- Field Plots
For Explicit Subtraction,
- Ansys Mechanical does not do implicit subtraction
- Ansys Electromagnetics modeler command Modeler > Model Preparation > Perform Explicit Subtraction can do explicit subtractions before sending geometry to Ansys.

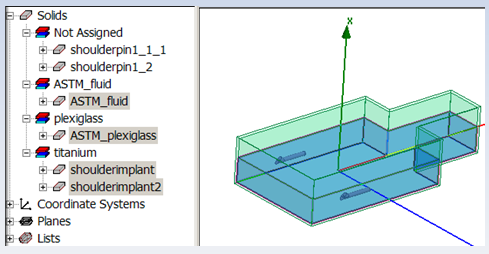

For example, consider the following model:

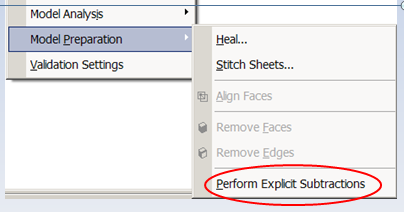

Perform Explicit Subtractions can be executed:
The results appear in the History tree as shown:
The Message window reports this action:
