Library of Models for CAD Integration

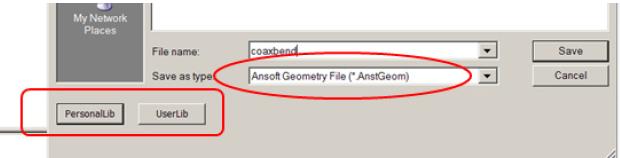

UDM technology allows a library of models. Any Ansys Electromagnetics model can be exported as an Ansoft Geometry File:

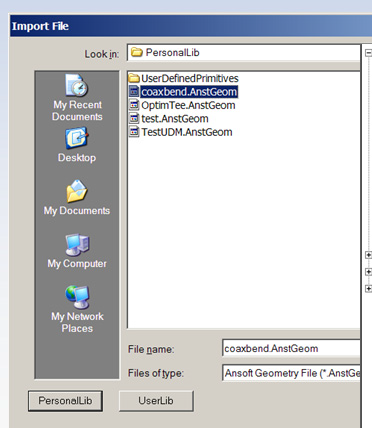

- An Ansoft Geometry File can be imported back as a UDM:
- Any Design/project variables associated with model are brought in as UDM parameters:

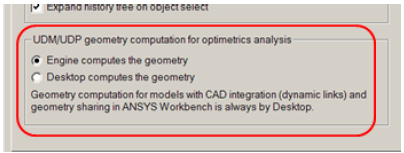

Geometry computation for a UDM (and also UDP) can be specified in the Modeler options as done on either
- Engine side (default): Requires deployment of UDM on each node.
- Desktop side: UDM need not be deployed on each engine. The Desktop will be busy during parametric analysis.
