UDM Properties
UDM Properties have four tabs – Definitions, Parameters, Options and Info.
Definition tab has
- the UDM name
- Coordinate system used to position UDM
- May have external reference to file

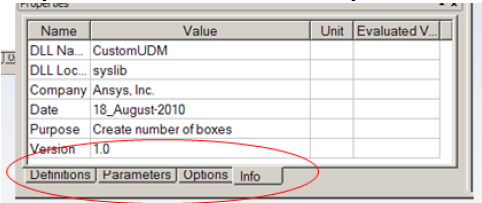

Info tab has the UDM dll name, dll location, version, etc.
Option tab may or may not have any options.
