CAD Integration Material Assignment Transfer
Prerequisite for assignment transfer:
- Engineering Data should have materials used in Ansys Electromagnetics model and material names should match with case.

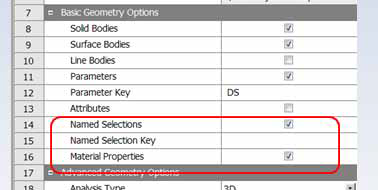

- Material Properties in Geometry Options must be checked.
Prerequisite for transfer as named selection:
- Named Selections in Geometry Options must be checked:
- Named Selection Key should either be empty or include Material.
