Geometry Transfer through Ansys DesignModeler (DM)
It is possible to edit geometry in Ansys DesignModeler (DM) before incorporating it into Mechanical:
- Useful when geometry needs preprocessing for Ansys simulation
- Can take advantage of geometry commands available in DM

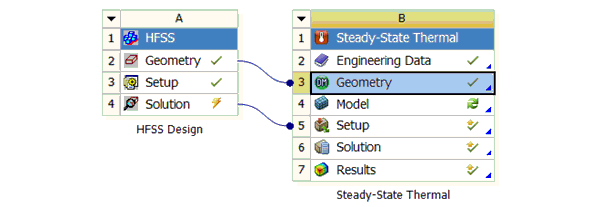

For example, consider an HFSS model linked to DM through the Workbench:

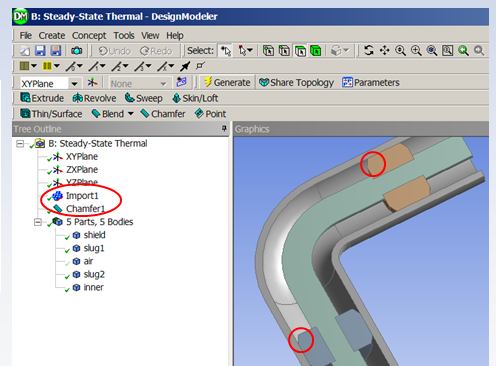

In this case, the following figure shows how a chamfer operation on geometries is imported.
