Drawing a Circle

Draw a circle by selecting a center point and a radius. Circles are drawn as true surfaces in the modeler. Before you draw a circle, you can specify the coordinate system, and you can set the drawing plane as Z, Y, or Z, or you can edit the plane in the properties.

  1. From the menu bar, click Draw> Circle icon. Circle or on the Draw ribbon tab, click the Draw circle icon:

    Draw Circle icon selected in Draw Ribbon.

  2. Select the center point of the circle in one of the following ways:

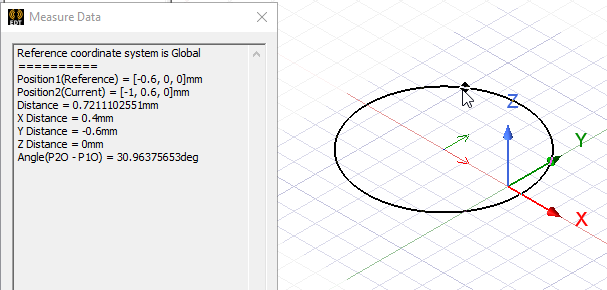

  3. Specify the radius by selecting a point on the circle's circumference in one of the following ways:
    • Click the point.
    • Type the coordinates of the point relative to the center point in the dX, dY, and dZ boxes, where d is the distance from the previously selected point.

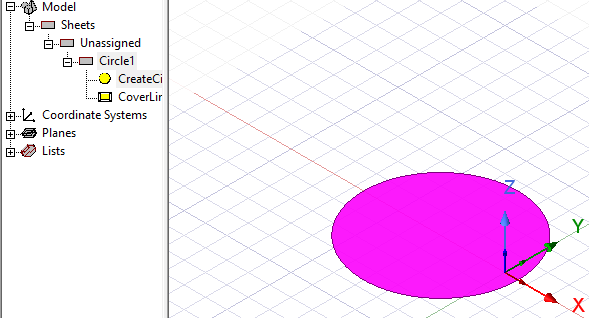

  4. Double-click or right-click and select Done from the shortcut menu. If the Modeler option for editing properties of new primitives is checked, the Properties dialog box appears, enabling you to modify the object's properties. If the Automatically cover closed polyline option is selected in the Modeler Options window, the circle will be covered, resulting in a 2D sheet object. Otherwise it will be a closed 1D polyline object. The new circle appears in the Modeler window and History tree.
Note:

The 3D Modeler permits drawing true curved objects. However, the solution is obtained using a tetrahedral mesh, which conforms to the true surface only within the limits identified by certain mesh settings. The modeler has default settings for this conformance, which is a reasonable trade-off between solution speed and solution quality for most objects but may not be ideal for all such objects. High-aspect ratio curves structures (such as helices with narrow and curved cross-sections) may benefit from user control of the faceting values. For details about these commands see:

Surface Approximation and related sections:

Rectilinear Elements and Curvilinear Elements and Guidelines for Modifying Surface Approximations.
