Creating Segmented Geometry

For some structures, you may want to create segmented as opposed to smooth (or True) surfaces. The following figure shows a comparison of a cylinder created with true surfaces and with segmented surfaces.

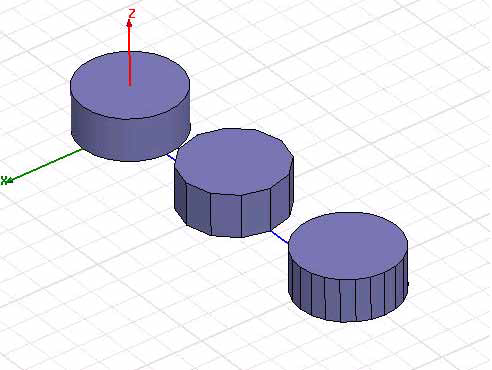

Modeler window with 3 cylinder models.

The following model objects can be created as segmented structures:


Circle, Ellipse, Cylinder

See: Segmented Objects

Polyline, Arc, Line Segment

See: Converting Polyline Segments
