Edges and their parameters can be displayed and modified in the Edgeset properties dialog, as shown in the figure and table below.

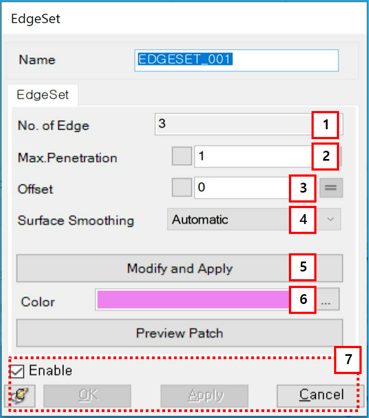

Figure 3.169: Edgeset properties

Figure 3.170: Parameters in the Edgset properties dialog

Parameter	Symbol	Description	Dimension (Range)
1. No. of Edge	N/A	Displays the number of edges in the Edgeset.	N/A
2. Max. Penetration		Use to set the maximum penetration. For more information, see Maximum Penetration for contact geometry in the Motion Theory Reference.	Length (Real>0)
3. Offset		Use to set the offset of the contact surface. For more information, see Contact case with Offset in the Motion Theory Reference.	Length (Real≥0)
4. Surface Smoothing	N/A	Use to set the smoothing type to Smoothing or No Smoothing. For more information, see Smoothing and No Smoothing geometries in the Motion Theory Reference.	N/A
5. Modify…	N/A	Use to add or remove edges using the MultiPatch Picker.	N/A
6. Color	N/A	Use to set the color of the Edgeset.	N/A
7. Control buttons	N/A	If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Properties Access and Modification.	N/A
