1.6.3. Entity Properties Access and Modification

There are several ways to open the Property dialog as shown in the figure and table below. After opening, the entity will be highlighted on screen and in the Subsystem Navigator window.

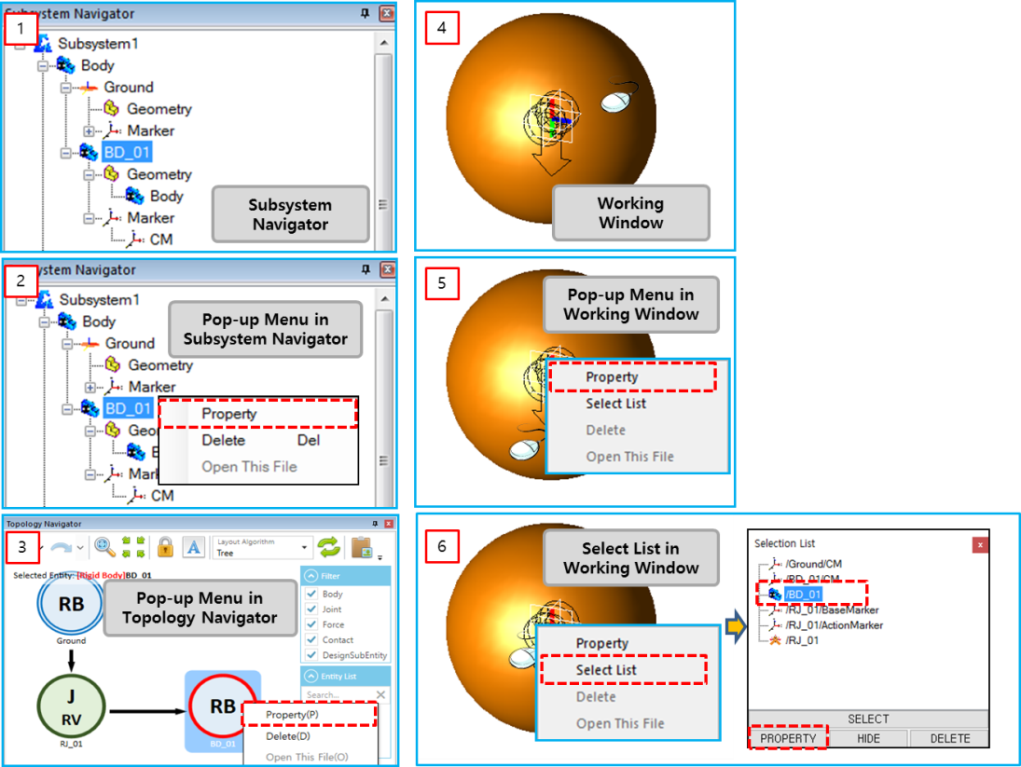

Figure 1.67: Examples of opening entity properties

Examples of opening entity properties

Figure 1.68: Opening entity properties

MethodOperation

1. Subsystem Navigator

Double click the entity name.

2. Drop-down menu in Subsystem Navigator

1. Click the entity name with mouse right button.

2. Click Property in the drop-down menu.

3. Drop-down menu in Topology Navigator

1. Click the entity node or entity name in entity list with mouse right button.

2. Click Property in the drop-down menu.

4. Working Window

Double click the entity graphics.

5. Drop-down menu in Working Window

1. Click the entity graphics with mouse right button.

2. Click Property in the drop-down menu.

6. Select List in Working Window

1. Click the entity graphics with mouse right button.

2. Click Select List option in the drop-down menu.

3. Click the entity name in the list.

4. Click Property button.


Properties of sub-entities can be modified in their list or properties page in the sub-entity window. For more information about sub-entity modification, see Sub-Entity Modification.
