A Structural Request can be created by selecting a Faceset or Marker. Parameters in the creation dialog are defined as shown in the figure and table below.

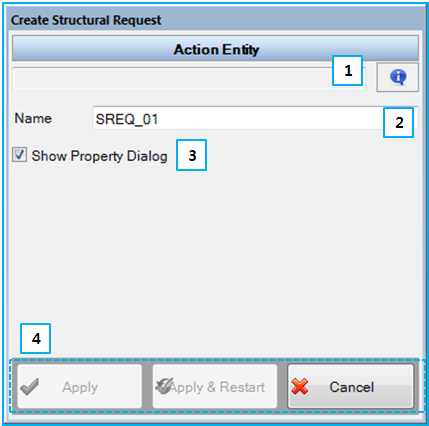

Figure 9.62: Description of parameters in the Structural Request creation dialog
| Parameter | Description |
| 1. Action Entity | Use to set a faceset or marker by General Picker. |
| 2. Name | Use to set a name of Structural Request. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Creation. |
