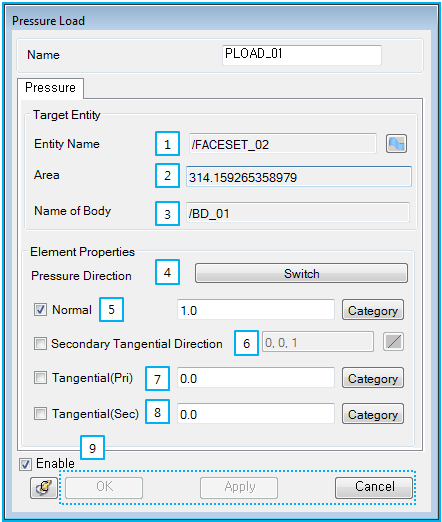

Figure 10.24: PLOAD property dialog

Figure 10.25: Description of parameters in the PLOAD property dialog

Parameter	Symbol	Description	Dimension (Range)
1. Entity Name	N/A	Use to set the faceset by Faceset Picker. The pressure is applied on all faces on the faceset.	N/A
2. Area	N/A	Show to total area of all faces on the faceset.	Length^2 (Real>0)
3. Name of Body	N/A	Show the body name to which the faceset belongs.	N/A
4. Switch	N/A	Use to change the normal pressure direction to reverse. Whenever clicking the button, the direction is changed to reverse.	N/A
5. Normal	N/A	Use to apply the pressure in the surface normal direction. The pressure can be defined as value or simple function expression.	Force/Length^2 (Real)
6. Secondary Tangential Direction		Use to set a direction vector by Direction Picker. The direction vector is used to determine to the tangential directions as shown in Figure 10.26: PLOAD Direction.	N/A
7. Tangential(Pri)	N/A	Use to apply the pressure in the primary tangential direction. The pressure can be defined as value or simple function expression.	Force/Length^2 (Real)
8. Tangential(Sec)	N/A	Use to apply the pressure in the secondary tangential direction. The pressure can be defined as value or simple function expression.	Force/Length^2 (Real)
9. Control buttons	N/A	If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Properties Access and Modification.	N/A

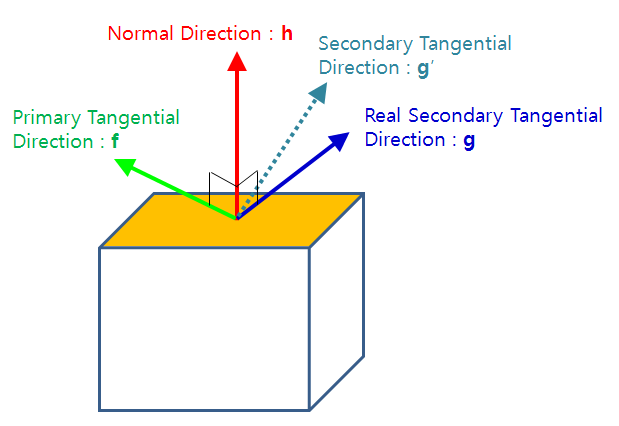

Figure 10.26: PLOAD Direction
