1.7.11. Faceset Picker

The Faceset Picker is widely used to select a Faceset to model contact, force, joint and EasyFlex entities as shown in the figure below. The definition of the Faceset Picker properties is the same as for the General Picker.

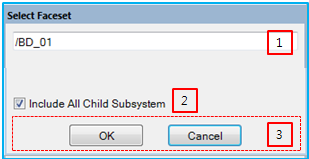

Figure 1.99: Faceset Picker properties dialog

Faceset Picker properties dialog
