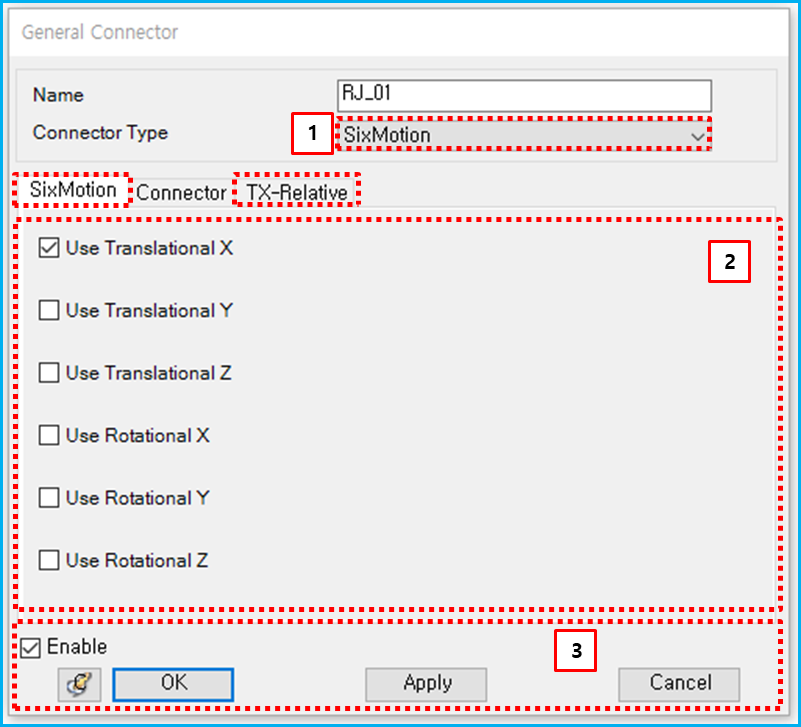

From the SixMotion property dialog, the six directions to be used can be selected in SixMotion tab as shown in the figure below. Once you select the directions, the relative tabs are displayed. The T-Relative and R-Relative tabs are the same as those for Translational Joint Properties and Revolute Joint Properties, respectively.
Figure 5.93: Description of parameters in the SixMotion property dialog
| Parameter | Symbol | Description |
Dimension (Range) |
| 1. Connector Type | N/A | Use to select the type of connector. | N/A |
| 2. SixMotion | N/A | Use to select 3 translational and 3 rotational directions to be used for SixMotion. | N/A |
| 3. Control buttons | N/A | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Properties Access and Modification. | N/A |
Connector parameters can be referred in the Constraint Entity Connectors.
