The MultiGeneral picker is used to select a geometry set of a solid body for various features as shown in the figure below and table below.

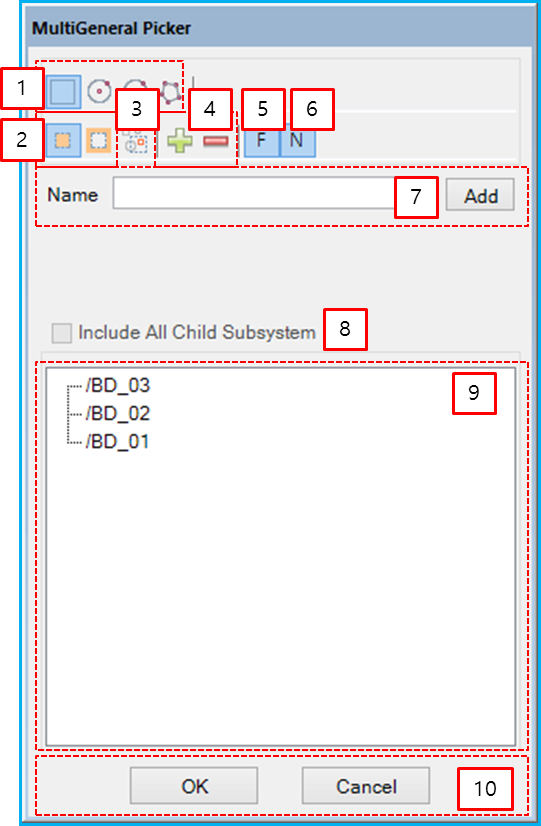

Figure 1.95: MultiGeneral Picker properties dialog

Figure 1.96: Description of MultiGeneral Picker properties

Property	Description
1.	Set the selection range. For more information, see MultiFace Picker.
2.	Select the interior or exterior of the selected range.
3.	Select whether to include entities intersecting the selection boundary.
4.	Add or remove a geometry. For more information, see MultiFace Picker.
5.	Select a geometry facing the screen. For more information, see MultiFace Picker.
6.	Select the geometry nearest to the screen. For more information, see MultiFace Picker.
7. Add	Select the geometry by entering the name of a body.
8. Include All Child Subsystem	Select any entities in child subsystems.
9. Geometry List	Show the list of selected geometries.
10. OK/Cancel	Close the picker dialog. When OK is clicked, the selected geometries are applied to the feature. Otherwise, if Cancel is clicked, the selected geometries are not applied.
