The GearSet information which is created using Body To DT is shown in the GearSet tab. In order to modify the specification the GearSet to be made by Body To DT, can check and modify the parameters in this tab.

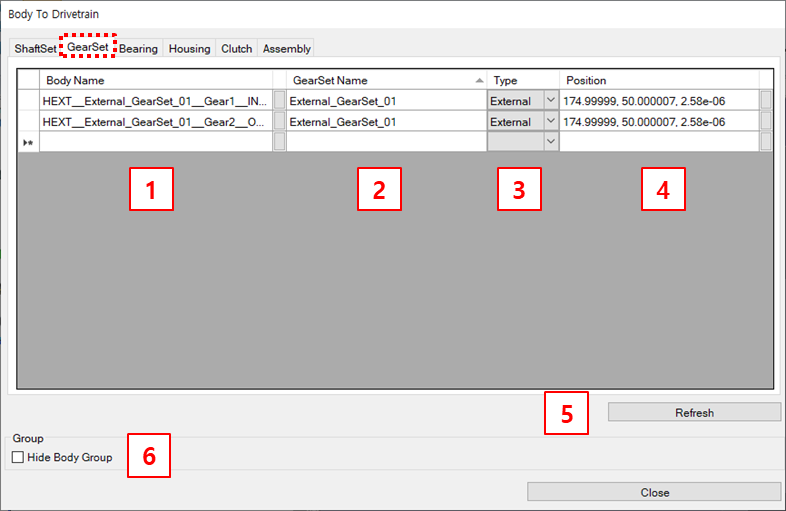

Figure 14.26: GearSet tab parameters for Body To DT
| Parameter | Description |
| 1. Body Name | The name of the body to be created into GearSet. |
| 2. GearSet Name | The name of the GearSet to be created. |
| 3. Type |
Use to set the GearSet type. The types that can be selected in the combo box are as follows. - External - Internal - Planetary - Double Pinion Planetary - Cross Helical - Rack and Pinion |
| 4. Position | Use to set the GearSet position. The default value is set as a center of CAD body. |

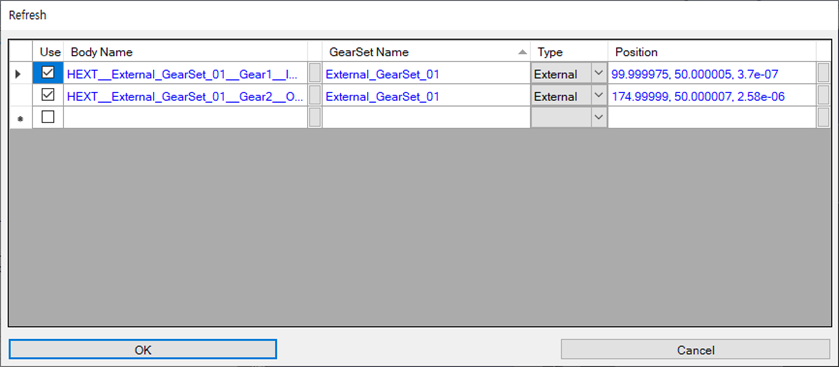

| 5. Refresh | Use to update the list of 3D CAD modified according to the naming rules. |
| 6. Hide Body Group | Use to hide 3D CAD used in Body To DT collectively. |
