The Bearing information which is created using Body To DT is shown in the Bearing tab. In order to modify the specification the Bearing to be made by Body To DT, can check and modify the parameters in this tab.

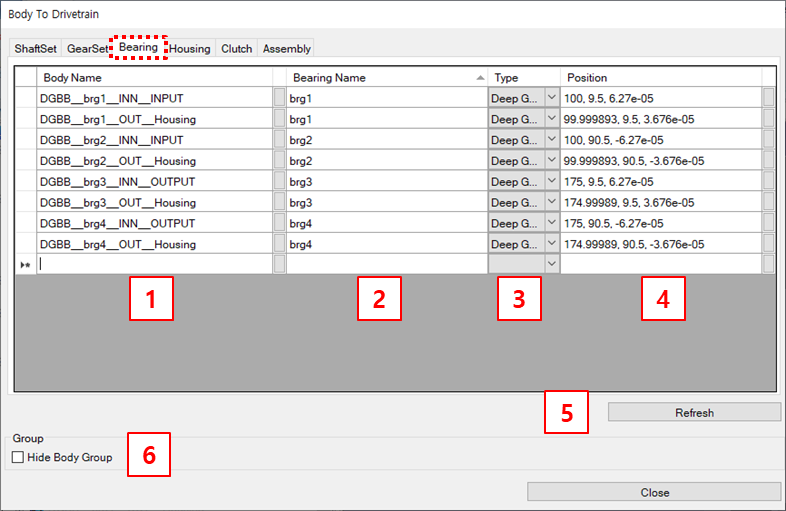

Figure 14.29: Bearing tab parameters for Body To DT
| Parameter | Description |
| 1. Body Name | The name of the body to be created into Bearing. |
| 2. Bearing Name | The name of the Bearing to be created. |
| 3. Type |
Use to set the Bearing type. The types that can be selected in the combo box are as follows. - Deep Groove Ball - Angular Contact Ball - Tapered Roller - Cylindrical Roller |
| 4. Position | Use to set the Bearing position. The default value is set as a center of CAD body. |

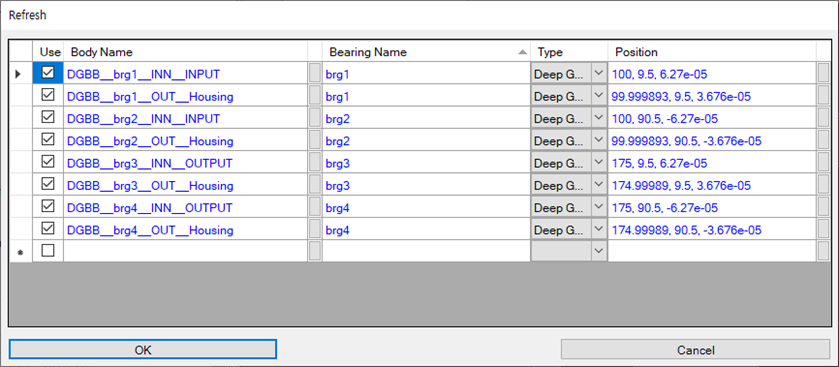

| 5. Refresh | Use to update the list of 3D CAD modified according to the naming rules. |
| 6. Hide Body Group | Use to hide 3D CAD used in Body To DT collectively. |
