An RBE Single can be created by two methods. One is to select facesets and the other is to select faces with color as shown in the figure below. For this case, the faceset is internally created. Parameters in the creation dialog are defined as shown in the table below.

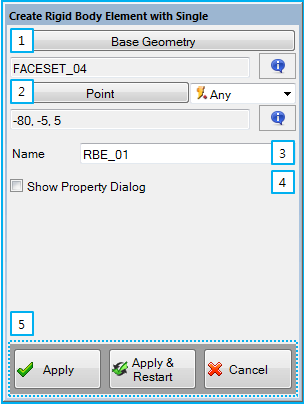

Figure 10.15: Description of parameters in the RBE Single creation dialog
| Parameter | Description |
| 1. Base Geometry | Use to set a faceset by Faceset Picker. All nodes on the faceset are constrained at the master point. |
| 2. Point | Use to set the master point by Point Picker. All nodes on the faceset has no relative motion with respect to this point. |
| 3. Name | Use to set a name of RBE Single. |
| 4. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer the Entity Creation. |
| 6. Body | Use to select the nodal EasyFlex body. The faces which belong to this body will be selected to make a faceset with color. |
| 7. Color | Use to select color to make a faceset. Faces with the selected color will be automatically selected to make the faceset. |
| 8. Pick | Use to pick the faces with color by Color Face Picker. |
