A Connected Entity Request can be created by selecting a rigid body, flexible body or EasyFlex body. Parameters in the creation dialog are shown in the figure and table below.

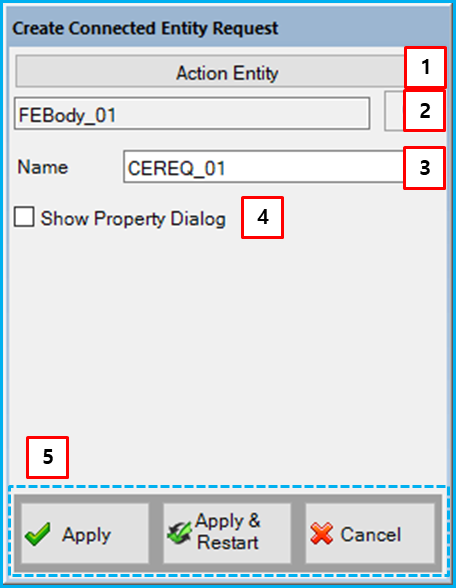

Figure 9.74: Description of parameters in the Connected Entity Request creation dialog
| Parameter | Description |
| 1. Action Entity | Use to select an action entity by the General Picker. For the list of available entities, refer to the Figure 9.58: Steps to model the simulation case. |
| 2. Entity Name | Use to show the selected entity name. |
| 3. Name | Use to set a name of Connected Entity Request. |
| 4. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Creation |
