Connecting properties such as the action and base curves are defined in the CVCV creation dialog, as shown in the figure and table below.

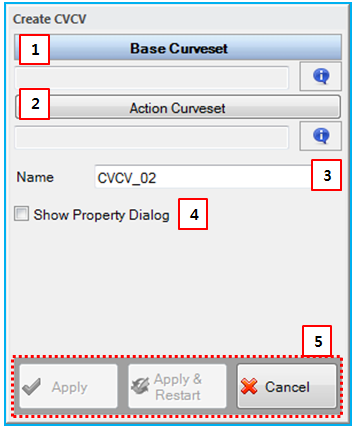

Figure 5.89: Description of parameters in the CVCV creation dialog
| Parameter | Description |
| 1. Base Curveset | Use to set a curveset on the base body using the General Picker. |
| 2. Action Curveset | Use to set a curveset on the action body using the General Picker. |
| 3. Name | Use to set the name of the CVCV. |
| 4. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
