57.4. Material Properties

The rubber parts of the tire use the Mooney-Rivlin material model. The reinforcing and bead-fill components use linear elastic material models.

The following tables show the material properties used for the tire components:

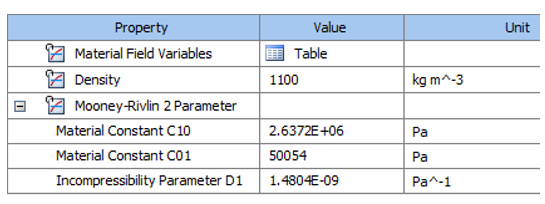

Figure 57.8: Apex Material Properties

Apex Material Properties

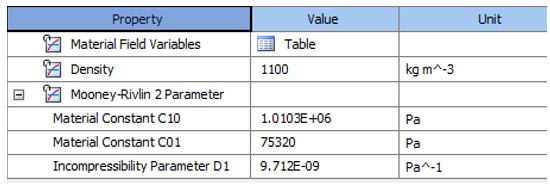

Figure 57.9: Bead-Fill Material Properties

Bead-Fill Material Properties

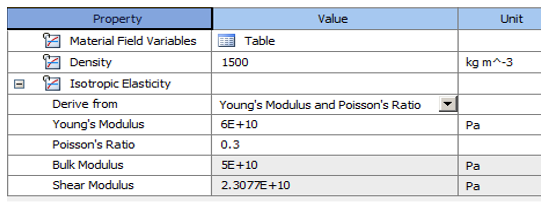

Figure 57.10: Belt Material Properties

Belt Material Properties

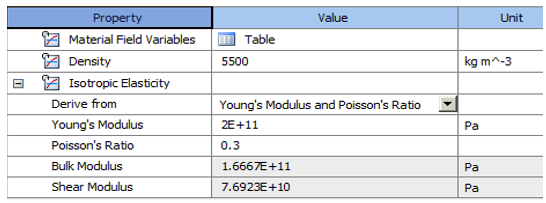

Figure 57.11: Belt Reinforcing Material Properties

Belt Reinforcing Material Properties

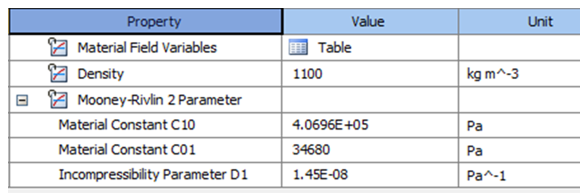

Figure 57.12: Body-Ply Material properties

Body-Ply Material properties

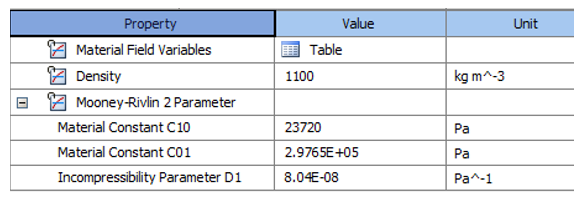

Figure 57.13: Body-Ply Reinforcing Material Properties

Body-Ply Reinforcing Material Properties

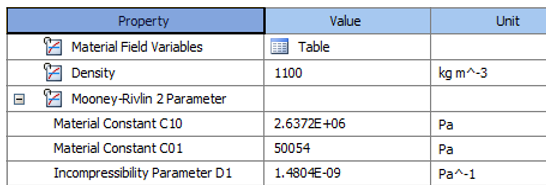

Figure 57.14: Inner Liner Material Properties

Inner Liner Material Properties

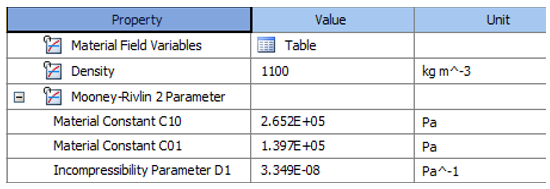

Figure 57.15: Rim Strip Material Properties

Rim Strip Material Properties

Figure 57.16: Side Wall Material Properties

Side Wall Material Properties

Figure 57.17: Tread Material Properties

Tread Material Properties
