8.8. Defining Contact Interactions (GCDEF Command)

By default, the program automatically uses standard, frictionless interaction behavior among all general contact surfaces, including self-contact.

You can define a specific (non-default) interaction behavior for any surface that will potentially come into contact with another surface in the general contact definition. You can also exclude contact interaction, for example, where one surface will never contact with another surface during the analysis.

Use the GCDEF command to define specific interactions or exclusions:

GCDEF,Option,SECT1,SECT2,MATID,REALID

where:

  • Option is typically an interface pairing option (AUTO, ASYM, SYMM, or EXCL). See Assigning Interface Pairing Options for details.

  • SECT1 and SECT2 are section ID numbers that identify the two general contact surfaces for which the interaction is defined. Alternatively, you can input the name of a nodal component that contains multiple section IDs in the SECT1 and/or SECT2 fields. Other labels such as ALL and SELF are also valid input for these fields.

  • MATID and REALID are material and real constant IDs used to specify contact interaction properties and other contact parameters at the interface.

8.8.1. Specifying General Contact Interactions Between Surfaces

Each general contact surface is identified by a unique section ID, which is typically generated by the GCGEN command. When defining a contact interaction between specific surfaces, you input the section ID numbers (SECT1 and SECT2) on the GCDEF command to indicate the two surfaces for which contact can occur. You must input SECT1 and SECT2. There are no defaults.

Contact Between Two Surfaces

A general contact interaction defined between two surfaces (where SECT1SECT2, but both are > 0) is the most specific type of general contact specification (comparable to controlling a specific contact pair):

GCDEF,AUTO,SECT1,SECT2,MATID,REALID

Self Contact

To control self-contact between different portions of a single general contact surface, input the same section ID for both SECT1 and SECT2. In the following example, self contact is defined for the general contact surface identified by section ID = 3:

GCDEF,AUTO,3,3,MATID,REALID

Alternatively, you can set SECT1 or SECT2 = SELF:

GCDEF,AUTO,3,SELF,MATID,REALID

The two types of general contact specifications described above—contact defined between two specific surfaces and self-contact—are the most specific types of general contact interactions that you can define.

8.8.2. Specifying General Contact Interactions Between Nodal Components

Instead of inputting a specific section ID in the SECT1 or SECT2 field of the GCDEF command, you can specify the name of a nodal component that is currently defined within the finite element model. The nodal component must have been previously defined via the CM command and must contain exterior nodes of one or more surfaces. Component names are valid input for SECT1 and SECT2 when Option = (blank), ASYM, AUTO, SYMM, EXCL, DELETE, LIST, TABLE, or TABLESOL.

In the example below, the GCDEF command specifies contact between nodal components representing the pin and rod surfaces of the model discussed in Modeling General Contact - Basic Procedure.

NSEL,S,NODE,....     ! Select a set of nodes on pin surface
CM,PIN,NODE          ! Group selected nodes into component PIN
NSEL,S,NODE,....     ! Select a set of nodes on rod surface
CM,ROD,NODE          ! Group selected nodes into component ROD
!
GCDEF,ASYM,PIN,ROD,BondID,REALID   ! Define asymmetric bonded contact between
                                   ! components PIN and ROD (BondID is a maerial ID)

The GCDEF command loops through all valid section IDs found in each node component input for SECT1 and SECT2. The node component names are not stored or listed, Instead, the interpreted section IDs are stored and listed as separate GCDEF entries.

Thus, when the node components input for SECT1 and SECT2 contain nodes from multiple general contact surfaces having different section IDs, all possible combinations of SECT1/SECT2 interactions are considered in the general contact definition. As an example, if component 1 (input for SECT1) contains nodes from N1 section IDs and component 2 (input for SECT2) contains nodes from N2 section IDs, the GCDEF command defines contact interactions for N1×N2 surface combinations.

Contact can be defined between general contact surfaces using a combination of section IDs and defined components, as illustrated below:

GCDEF,AUTO,1,COMP2,MATID,REALID       ! Define auto asymetric contact
                                      ! between SECT1 and component COMP2
GCDEF,AUTO,COMP1,SELF,MATID,REALID    ! Define self contact for component COMP1

The scope of general contact section IDs from a node component can be limited by adding one of the following extensions onto the component name that you input:

_edgeReturns only section IDs of all CONTA177 general contact line elements (which may be on edges of 3D solid or shell base elements, or on beam base elements)
_faceReturns only section IDs of general contact elements on faces of solid or shell base elements (includes contact elements on both the top and bottom of shell elements)
_vertReturns only section IDs of all CONTA175 general contact vertex elements (which may be on convex corners of 2D or 3D solid or shell base elements)
_topReturns only section IDs of general contact elements on top faces of shell base elements and on faces of solid base elements
_botReturns only section IDs of general contact elements on bottom faces of shell base elements and on faces of solid base elements

If none of these extensions is present, the given GCDEF specification is applied to all types of general contact elements.

The following example demonstrates use of the extensions:

GCDEF,EXCLUDE,7,COMP2_EDGE            ! Exclude contact between SECT7 and component COMP2 edges
GCDEF,SYMM,COMP1_TOP,SELF,MATID       ! Define symmetric self contact for component COMP1 top faces

Be cautious when using GCDEF,EXCLUDE. If you do not specify an extension on the component name, both faces and edges are excluded by default.

8.8.3. Specifying General Contact Interactions for the Entire Model

To make global changes for general contact, you can input the label ALL instead of a specific section ID in the SECT1 and SECT2 fields of the GCDEF command.

For example, to override the default frictionless contact among all general contact surfaces with a different interface behavior or contact control, issue:

GCDEF,Option,ALL,ALL,MATID

where MATID corresponds to a behavior other than standard frictionless behavior (for example, always bonded).

To define specifications for self contact for all general contact surfaces, issue:

GCDEF,Option,ALL,SELF,MATID,REALID

or

GCDEF,Option,SELF,ALL,MATID,REALID

Either of these command controls the general contact behavior for self contact for all surfaces (section 1 with section 1, section 2 with section 2, and so on).

To control general contact interaction between a specific surface and any general contact surface (another surface or itself), issue:

GCDEF,Option,SECT1,ALL,MATID,REALID

or

GCDEF,Option,ALL,SECT2,MATID,REALID

The above two commands are equivalent except when Option is set to ASYM (asymmetric contact). For example, the following command treats SECT1 as the contact surface with respect to all other surfaces, which will be target surfaces:

GCDEF,ASYM,SECT1,ALL,MATID,REALID

On the other hand, the following command treats SECT2 as the target surface with respect to all other surfaces, which will be contact surfaces:

GCDEF,ASYM,ALL,SECT2,MATID,REALID

The labels ALL_EDGE, ALL_FACE, ALL_VERT, ALL_TOP, and ALL_BOT are also valid input for SECT1 and SECT2. (See GCDEF for details of the meaning of each label.) These labels apply to all defined general contact element section IDs in the model without regard to the select status of the elements or attached nodes. The labels are immediately converted to section ID numbers, unlike the ALL label which is stored as ALL.

In some coarse mesh situations where there are no nodes internal to a surface, ALL_FACE, ALL_TOP, and ALL_BOT may pick up CONTA172 or CONTA174 section or type IDs that would be missed for a node component containing all defined nodes.

8.8.4. Specifying Contact Exclusions

The GCDEF command allows you to exclude contact between specified surfaces. Use Option = EXCL and specify the surfaces SECT1 and SECT2:

GCDEF,EXCL,SECT1,SECT2

There are two possible reasons to define a contact exclusion:

  • To improve computational performance by excluding surfaces that are not likely to interact

  • To improve modeling robustness by avoiding physically unreasonable contact interactions (see Example 8.1: Excluding Spurious Contact)

To exclude self-contact within a surface, set SECT1 = SECT2. For example, the following command excludes self contact for the surface identified by section ID number 4:

GCDEF,EXCL,4,4

To exclude self-contact for all general contact surfaces, issue:

GCDEF,EXCL,All,SELF

or

GCDEF,EXCL,SELF,ALL

For many assembly models, self-contact is unlikely to occur. Using one of the above commands to exclude self-contact prevents unreasonable interactions within each part, in particular for assemblies with very thin parts.

To exclude contact between a particular surface and all other general contact surfaces (partial general contact exclusion), issue:

GCDEF,EXCL,SECT1,ALL

or

GCDEF,EXCL,ALL,SECT2

Alternatively, you may delete general contact elements on surfaces that should be excluded. This results in an even more efficient solution.

To exclude all general contact interactions, which completely overrides the default frictionless contact, issue:

GCDEF,EXCL,ALL,ALL

The labels ALL_EDGE, ALL_FACE, ALL_VERT, ALL_TOP, and ALL_BOT are also valid input for SECT1 and SECT2. (See GCDEF for details of the meaning of each label.) For example

GCDEF,EXCL,4,ALL_EDGE            ! Exclude contact between section 4 and all edges

Example 8.1: Excluding Spurious Contact

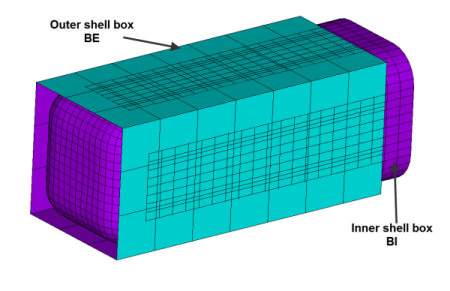

Consider the model below in which one shell box (node component BI) is fitted inside another shell box (node component BE). For this shell-to-shell contact example, some of the shell elements of the inner and outer boxes overlap, and the general contact solution detects two possible contact interactions:

  1. The exterior surface of the inner shell box contacting the interior surface of the outer shell box

  2. The interior surface of the inner shell box contacting the exterior surface of the outer shell box

The second interaction is obviously spurious contact, and it should be excluded manually by issuing:

GCDEF,EXCL,BE_TOP,BI_BOT

Figure 8.14: Contact Between Two Shell Boxes

Contact Between Two Shell Boxes



8.8.4.1. Automatic Contact Exclusions

Mechanical APDL automatically excludes general contact in the following situations:

  • Excludes general contact elements that overlap with existing contact pairs. For instance, if a pair-based interaction has been defined between surface 1 and surface 2, the program automatically excludes general contact interactions between these two surfaces so that only the contact pair definition is used. The surfaces involved could either be a subset of general contact surfaces or could overlap fully/partially over several general contact surfaces.

  • Excludes contact interaction between any two rigid surfaces, and self-contact within each rigid surface.

  • Keeps one side of the contact-target pairing if automatic asymmetric contact logic is used, while excluding the opposite side of the contact interaction.

  • Excludes contact interactions for portions of surfaces that largely penetrate each other (larger than one quarter of the pinball radius) in the initial configuration, except when you define an absolute pinball radius.

8.8.5. Assigning Interface Pairing Options

The Option field on the GCDEF command accepts four input labels that enable you to define the interface pairing option for general contact surfaces identified by SECT1 and SECT2.

Option LabelDescriptionCommand
AUTOAutomatic asymmetric contact between surfaces SECT1 and SECT2. This is the default if Option was not previously specified
GCDEF,AUTO,SECT1,SECT2,MATID,REALID
ASYMAsymmetric contact with SECT1 as the contact surface and SECT2 as the target surface
GCDEF,ASYM,SECT1,SECT2,MATID,REALID
SYMMSymmetric contact between surfaces SECT1 and SECT2
GCDEF,SYMM,SECT1,SECT2,MATID,REALID
EXCLExclude contact interaction between surfaces SECT1 and SECT2. MATID and REALID are ignored.
GCDEF,EXCL,SECT1,SECT2

The automatic asymmetric pairing option (Option = AUTO) is based mainly on relative mesh refinement and material rigidity. This logic is also used for self-contact within a surface (when SECT1 = SECT2). For example when a user-defined surface overlays several unconnected parts, contact between parts having the same section ID as well as contact of each part with itself are considered to be self-contact. Self-contact within a physical part always uses symmetric contact.

The automatic asymmetric pairing logic, which is set by default for surface-to-surface contact (CONTA172 and CONTA174), works well in most cases.

For the asymmetric pairing option (Option = ASYM), the guidelines for assigning contact-target pairing rules for pair-based contact discussed in Designating Contact and Target Surfaces are also applicable for situations in which you manually define the asymmetric logic for the general contact.

The symmetric pairing option (Option = SYMM) is often used when the interface mesh from both sides is relatively coarse. Symmetric contact enforces the contact constraint conditions at more surface locations than asymmetric contact. The limitations of symmetric logic for pair-based contact discussed in Asymmetric Contact vs. Symmetric Contact are also applicable for situations in which you manually specify symmetric general contact.

The symmetric pairing logic is set by default for 3D beam-to-beam or edge-to-edge contact (CONTA177).

Examples: Self-Contact

The following table presents examples of how to use the contact pairing options for self-contact.

Self-Contact Pairing ExampleCommandNotes
Automatic asymmetric contact for self-contact within a specific surface identified by Section ID = 5
GCDEF,AUTO,5,5,MATID,REALID
Option = ASYM is not valid for a self-contact definition. If input, it will be treated as Option = AUTO.
Symmetric contact for self-contact within a specific surface identified by Section ID = 6
GCDEF,SYMM,6,6,MATID,REALID
Automatic asymmetric contact for self-contact within surfaces defined via nodal components
GCDEF,AUTO,COMP1,COMP2,MATID,REALID
Automatic asymmetric contact for self-contact within all surfaces
GCDEF,AUTO,ALL,SELF,MATID,REALID
Symmetric contact for self-contact within all surfaces
GCDEF,SYMM,ALL,SELF,MATID,REALID

Examples: Contact Between One Surface and All Other General Contact Surfaces

The following table presents examples of how to use the contact pairing options to define interactions between one specific surface and all general contact surfaces.

Contact Pairing Example (One Surface to All Surfaces)CommandNotes
Automatic asymmetric contact between one specific surface and all general contact surfaces
GCDEF,AUTO,SECT1,ALL,MATID,REALID
or
GCDEF,AUTO,ALL,SECT2,MATID,REALID

In some cases, a conflict can arise between general contact specifications for one surface to all surfaces. When this occurs, the program determines the actual material ID (MATID) and real constant ID (REALID) to use during solution. Issue GCDEF,TABLE before the solution to verify which IDs will be used.

As an example, consider the following general contact specifications:

GCDEF,Option1,6,ALL,MATID1,REALID1
GCDEF,Option2,7,ALL,MATID2,REALID2

To avoid a conflict, you can add a specific entry for surfaces 6 and 7:

GCDEF,Option,6,7,MATID,REALID
Symmetric contact between one specific surface and all general contact surfaces
GCDEF,SYMM,SECT1,ALL,MATID,REALID
or
GCDEF,SYMM,ALL,SECT2,MATID,REALID
Asymmetric contact between SECT1 and all general contact surfaces, where SECT1 is the contact surface
GCDEF,ASYM,SECT1,ALL,MATID,REALID
Asymmetric contact between SECT2 and all general contact surfaces, where SECT2 is the target surface
GCDEF,ASYM,ALL,SECT2,MATID,REALID
Automatic asymmetric contact between surface specified via nodal component COMP1 and all general contact surfaces
GCDEF,AUTO,COMP1,ALL,MATID,REALID

Examples: Contact Among All General Contact Surfaces

The following table presents examples of how to use the contact pairing options to define contact among all general contact surfaces.

Contact Pairing Example (All Surfaces)CommandNotes
Automatic asymmetric contact among all general contact surfaces
GCDEF,AUTO,ALL,ALL,MATID,REALID
Option = ASYM is not valid for all general contact surfaces. If input, it will be treated as Option = AUTO.
Symmetric contact among all general contact surfaces
GCDEF,SYMM,ALL,ALL,MATID,REALID


8.8.6. Deleting Specified General Contact Interactions

If you need to remove a particular general contact specification that was previously defined, use Option = DELETE on the GCDEF command:

GCDEF,DELETE,SECT1,SECT2

To remove general contact interactions previously defined by “ALL,ALL”, issue:

GCDEF,DELETE,ALL,ALL

Note that GCDEF,DELETE,ALL,ALL does not remove the entire GCDEF table. It merely removes any existing GCDEF,,ALL,ALL definitions, while leaving intact any existing GCDEF definitions that are more specific.

To remove the entire GCDEF table, issue:

GCDEF,DELETE,TOTAL

It is good practice to list all interactions (GCDEF,LIST) before and after a GCDEF,DELETE command.
