Viewing PSI SYZ Results

To view PSI SYZ results in SIwave:

  1. Click Results.
  2. From the PSI area, select SYZ > [Simulation Name].

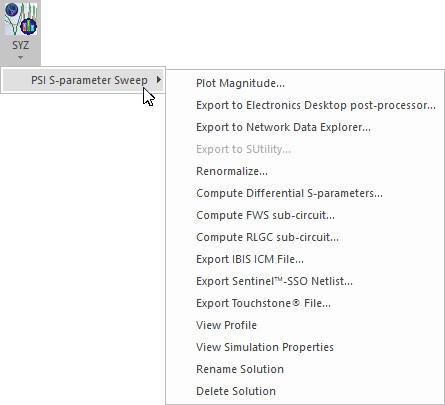

    3. PSI SYZ Menu

  3. Select the type of results you would like to view.

    4. Result menu options include:

    • Plot Magnitude – allows you to view a plot of S-, Y-, and Z- parameters. See Plotting Magnitude.
    • Compute Differential S-Parameters – allows you to view a differential plot of s-parameters. See Computing Differential S-parameters.
    • Compute FWS Sub-Circuit – allows you to compute and export a Full Wave SPICE (FWS) plot. See Computing FWS sub-circuit .
    • Compute RLGC - Sub-Circuit – allows you to derive RLGC information from the S-parameters. After you compute the RLGC matrices, you can export the RLGC subcircuit. See Computing RLGC Sub-Circuits.

Plot Magnitude:

From the SYZ Results menu, you can also access additional menu options and export simulation information.
