PSI SYZ Results Menu Options

Navigate to the PSI SYZ Results menu:

1. Click Results.
2. From the PSI area, select SYZ > [Simulation Name].



Menu options include:

• Renormalize – opens the S- Parameter Renormalization window, where you can modify the reference impedance for one or more ports.
• View Profile – opens the simulation profile.
• View Simulation Properties – opens the Simulation Properties window on the Sweep tab.
• Rename Solution – allows you to rename the solution.
• Delete Solution – deletes the solution.

Renormalize:

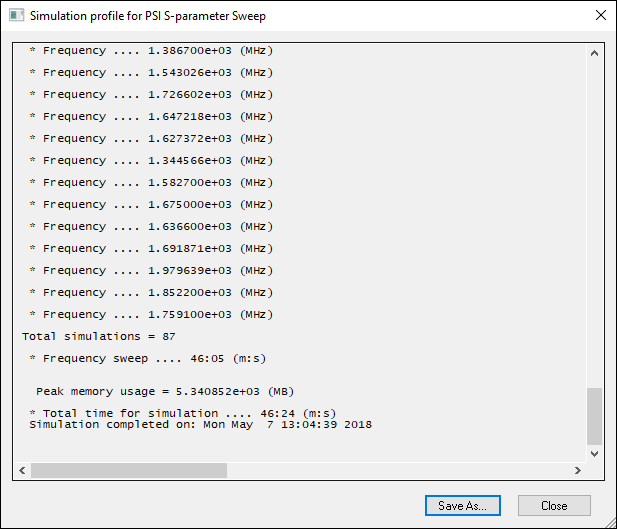

Simulation Profile:

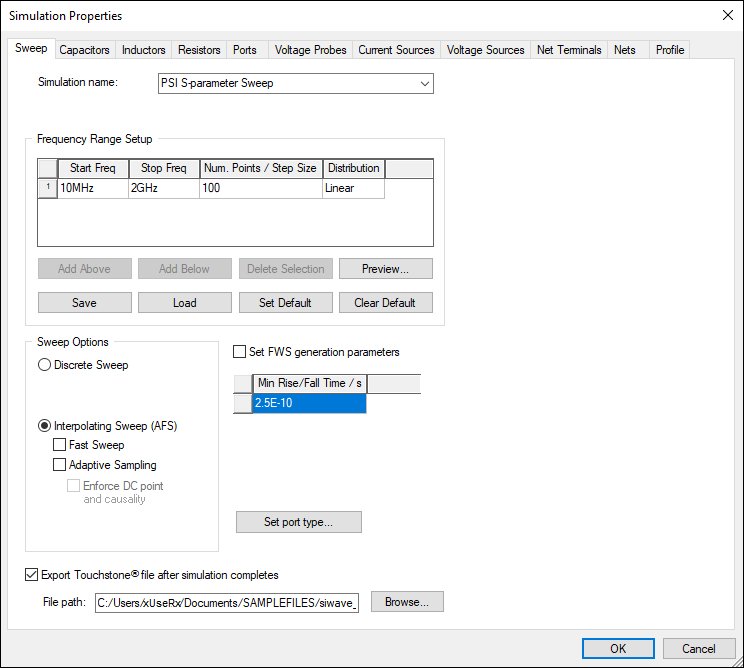

Simulation Properties:

From the SYZ results menu, you can also view PSI SYZ results and export certain information.
