Importing Projects
SIwave enables you to import a project from a variety of sources.
Types of files SIwave can import include:
- DXF
- GDSII
- Mentor Board Station RE/XE Design
- Mentor Expedition Design
- Mentor PADS Design
- IPC2581
- ODB++
- Lead Frame Design
- ANF
- Ansys EDB
- Legacy ALinks (AnsoftLinks6) Project
- MDL
- XFL
- Template

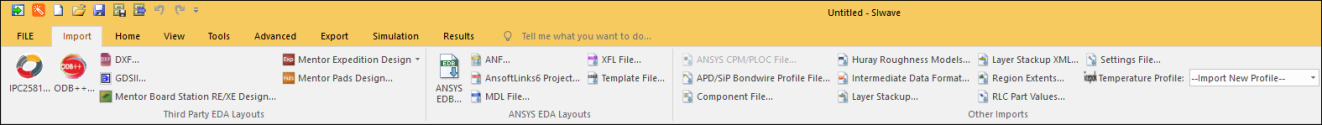

To import a project, click the Import tab.
Select the option for the type of file/folder you would like to import. Then browse to the file and click Open.
The import of some file types requires additional steps. Those are:
