Multiple Geometry Links for CAD Integration
With CAD Integration, you can utilize geometry from multiple upstream sources. The source can be from any CAD or Ansys Electromagnetics product. This creates a user-defined model (UDM) for each geometry source.

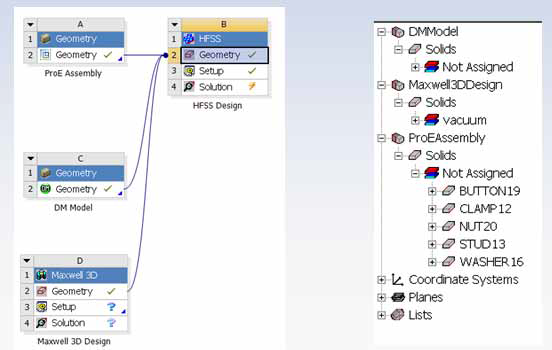

For example, the following figure shows a DM Model, a Maxwell model, and ProE (Creo Parametric) model linked to HFSS in Workbench, and displayed in the HFSS History tree as three UDMs.
