Running the Multipaction Simulation

Once the multipaction setup is completed, right-click the multipaction analysis and select Analyze to run the multipaction simulation.

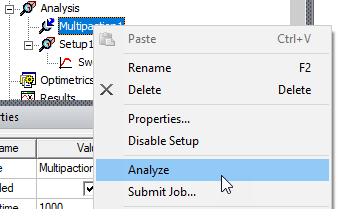

Multipaction shortcut menu, Analayze option highlighted.

If the 3D field solutions of the linked frequency sweep and the Maxwell projects are not available, additional HFSS and Maxwell simulations will be invoked as shown in the Progress window.
