14.5.6.3. Stiffness Bearing

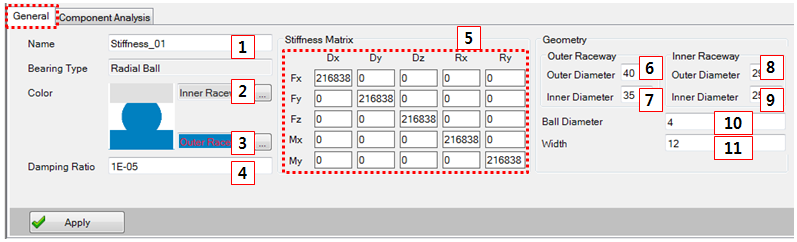

Figure 14.256: Stiffness Bearing General tab

Figure 14.257: Parameters in the Stiffness Bearing General tab

Parameter	Description	Dimension (Range)
1. Name	Use to set the stiffness bearing name.	N/A
2. Color (inner)	Select the color of the inner raceway.	N/A
3. Color (outer)	Select the color of the outer raceway. This is also used for the ball color.	N/A
4. Damping Ratio	Use to set the damping ratio.	N/A
5. Stiffness Matrix	Use to set the stiffness matrix (5x5).	N/A
6. Outer Raceway Outer Diameter	Use to set the outer diameter of the outer raceway.	Length
7. Outer Raceway Inner Diameter	Use to set the inner diameter of the outer raceway.	Length
8. Inner Raceway Outer Diameter	Use to set the outer diameter of the inner raceway.	Length
9. Inner Raceway Inner Diameter	Use to set the inner diameter of the inner raceway.	Length
10. Ball Diameter	Use to set the diameter of the balls.	Length
11. Width	Use to set the bearing width.	Length
