General

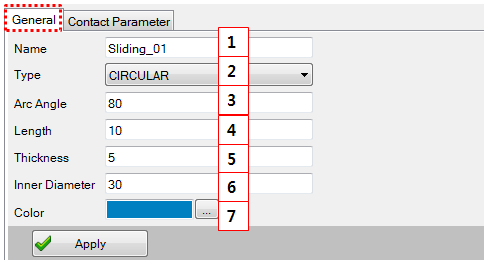

Figure 14.253: Parameters in the Sliding Bearing General tab
| Parameter | Description |
Dimension (Range) |
| 1. Name | Use to set the sliding bearing name. | N/A |
| 2. Type |
Use to set section type. - Circular | N/A |
| 3. Arc angle | Use to set the arc angle. | Angle |
| 4. Length | Use to set the length. | Length |
| 5. Thickness | Use to set the thickness. | Length |
| 6. Inner diameter | Use to set inner diameter. | Length |
| 7. Color | Select the color of the sliding bearing. | N/A |
Contact Parameters

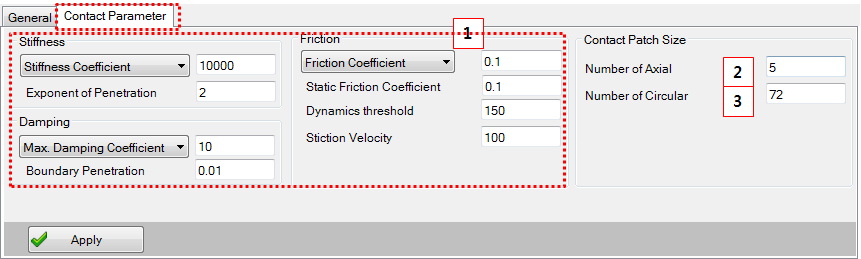

Figure 14.255: Parameters in the Sliding Bearing Contact Parameter tab
| Parameter | Description |
Dimension (Range) |
| 1. Contact Parameter | Use to set the contact parameters. Refer to Intermittent Contact Force in the Motion Theory Reference for more information. | N/A |
| 2. Number of Axial | Use to set the axial number for the patch. | N/A |
| 3. Number of Circular | Use to set the circular (angle) value for the patch. | Angle |
