A Request is categorized into kinematic and force components. The kinematic request can report the relative acceleration, and the force request can report the force and torque. If the request item is selected, the results are written to the data file and can then be seen in the Motion Postprocessor.

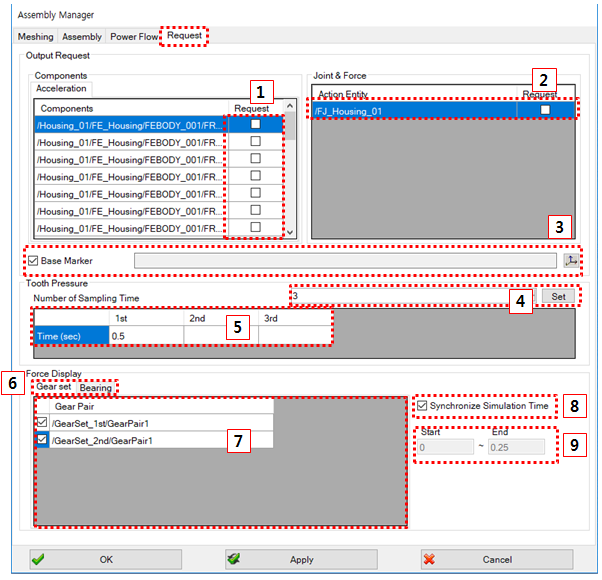

Figure 14.285: Parameters in the Assembly Manager Request tab
| Parameters | Description |
Dimension (Range) |
| 1. Components | Use to select the entities for acceleration measurement. | N/A |
| 2. Force |
Use to select the entities for force measurement. The candidate items are as follows. - Constraints - Forces | N/A |
| 3. Base Marker | Use to set the base marker of the output function. | N/A |
| 4. Number of Sampling Time | Use to set the number of sampling times. | N/A |
| 5. Sampling Time | Use to set the sampling times for the gear contact force and deformation. | Time(s) |
| 6. Entity |
Select the entity type for the force display. (This is not yet supported for bearings) | N/A |
| 7. Selection | Use to select the entities for the force display. | N/A |
| 8. Synchronize Simulation Time | The entire simulation is set for the force display. | N/A |
| 9. Start~End | Use to set the start time and the end time manually. | N/A |
