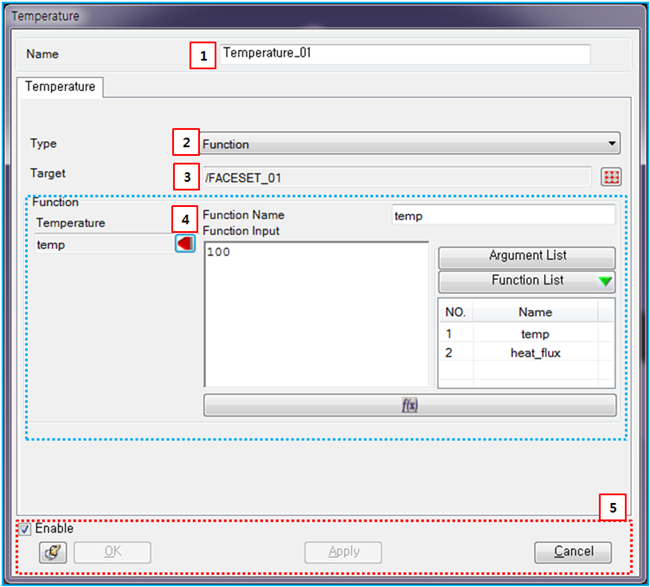

Figure 15.12: Temperature property dialog

Figure 15.13: Description of parameters in the Temperature property dialog

Parameter	Symbol	Description	Dimension (Range)
1. Name	N/A	Use to set a name of Temperature.	N/A
2. Type	N/A	Use to set the function expression or user subroutine.	N/A
3. Target	N/A	Use to set a target on which the temperature is applied by General Picker. The target can be defined as the nodal flexible body, EasyFlex body, patchset, nodeset, or faceset.	N/A
4. Function		To set the magnitude of temperature.	Temperature (N/A)
5. Control buttons	N/A	If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Properties Access and Modification.	N/A
