A target entity on which the Temperature is specified is defined in the Temperature creation dialog as shown in the figure and table below. The target entity must be created before creating the temperature entity.

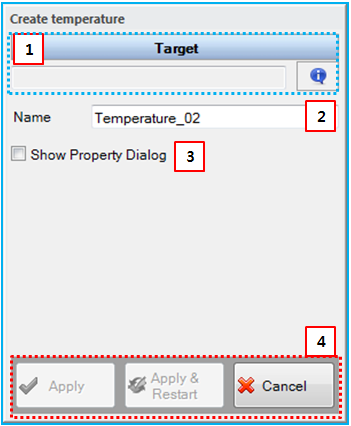

Figure 15.11: Description of parameters in the Temperature creation dialog
| Parameter | Description |
| 1. Target | Use to set a target on which the temperature is applied by General Picker. The target can be defined as the nodal flexible body, EasyFlex body, patchset, nodeset, or faceset. |
| 2. Name | Use to set a name of Temperature. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Creation. |
