The properties of a heat generation entity can be defined as shown in the figure and table below.

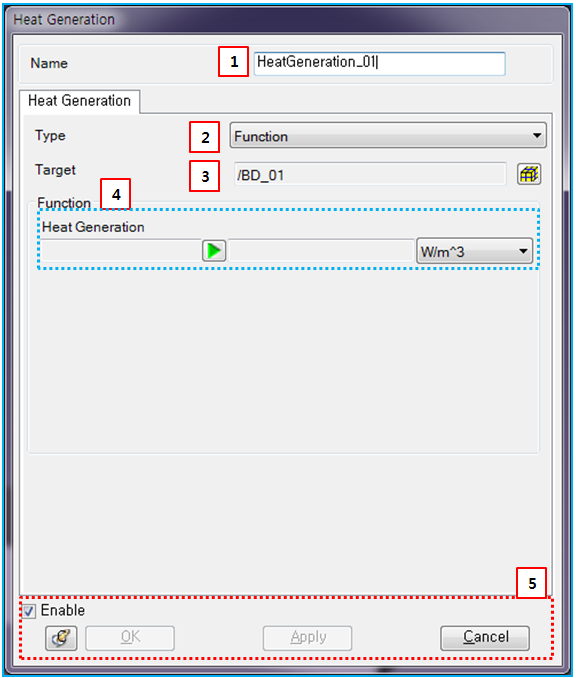

Figure 15.29: Description of parameters in the Heat Generation property dialog
| Parameter | Symbol | Description | Dimension (Range) |
| 1. Name | N/A | Use to set a name of Heat generation. | N/A |
| 2. Type | N/A | Use to set the function expression or user subroutime. | N/A |
| 3. Target | N/A | Use to set a target on which the heat generation is applied by General Picker. The target can be defined as the nodal flexible body or nodal EasyFlex body. | N/A |
| 4. Function |
 | To set the magnitude of heat flow per unit volume by using function expression or user sbroutine. |
Power /Length^3 (N/A) |
| 5. Control buttons | N/A | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Properties Access and Modification. | N/A |
