A target entitiy on which a heat is generated can be defined in the Heat Generation creation dialog as shown in the figure and table below. The target entity must be created before creating the heat generation entity,

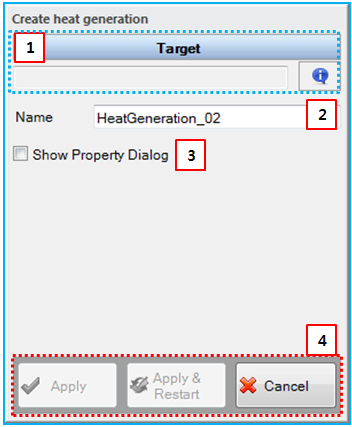

Figure 15.27: Description of parameters in the Heat Generation creation dialog
| Parameter | Description |
| 1. Target | Use to set a target on which the heat generation is applied by General Picker. The target can be defined as the nodal flexible body or nodal EasyFlex body. |
| 2. Name | Use to set a name of Heat generation. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, the buttons are enabled. If you want to know the control buttons, refer to Entity Creation. |
