Sheet Thicken generates a solid body from a sheet body as shown in the figure below and in the following table.

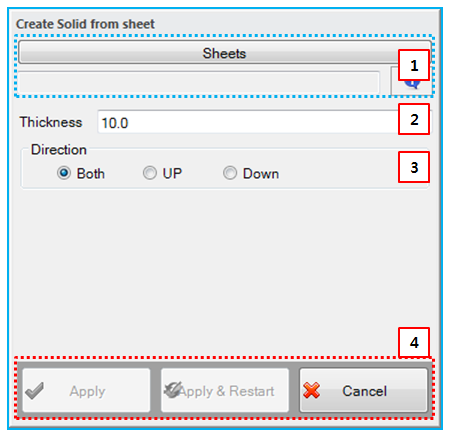

Figure 3.201: Description of parameters in the Sheet Thicken dialog
| Parameter | Description |
| 1. Sheets | Use to select a sheet body by using the MultiGeneral Picker. |
| 2. Thickness | Use to set the thickness of the sheet body. |
| 3. Direction |
Use to set the direction for the thickness as shown in the figure below.
|
| 4. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
