3.17.2. Change Face Color Operation

Change Face Color is used to define the color of faces. The operation is described in the figure below and in the following table.

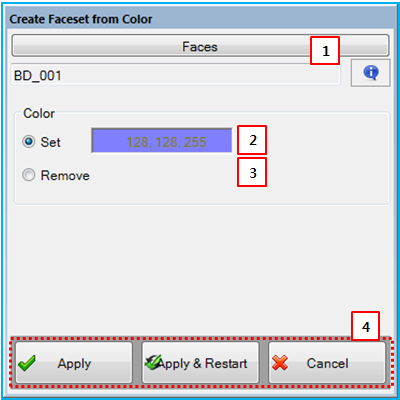

Figure 3.131: Change Face Color from the Faceset dialog

Change Face Color from the Faceset dialog

Figure 3.132: Description of parameters in the Create Faceset from Color dialog

ParameterDescription
1. FacesUse to set the faces by using the MultiFace Picker.
2. ColorUse to set the RGB color of selected faces by using the color dialog from the OS.
3. RemoveUse to delete the color of selected faces.
4. Control buttonsIf all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation.
