The MultiNode Picker is used to select a set of nodes of an FE body to make a Nodeset as shown in the figure and table below.

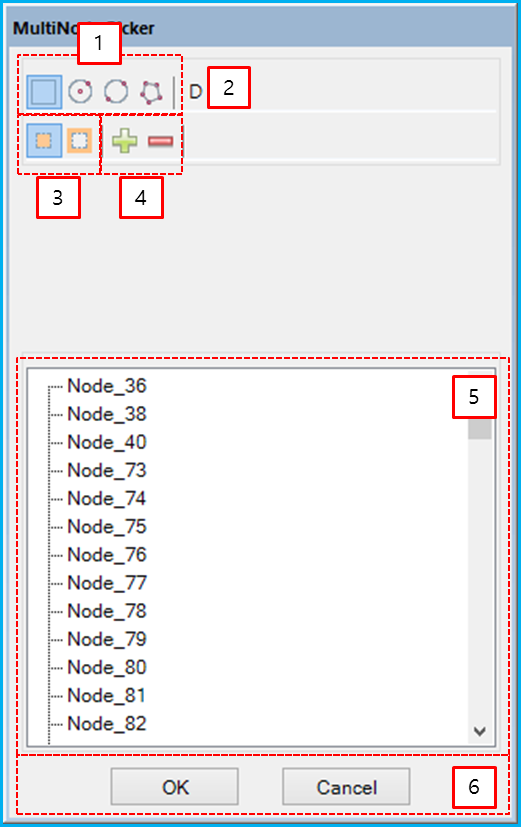

Figure 1.89: MultiNode Picker properties dialog

Figure 1.90: Description of MultiNode Picker properties

Property	Description
1.	Set the selection range. For more information, see MultiFace Picker.
2. Allow…	Allow selection of a node which belongs to another Nodeset.
3.	Select the interior or exterior of the selected range.
4.	Add or remove a node. For more information, see MultiFace Picker.
5. Node List	Show the list of selected nodes.
6. OK/Cancel	Close the picker dialog. When OK is clicked, the selected nodes are applied to the Nodeset. Otherwise, when Cancel is clicked, the selected nodes are not applied.
