A Switchable Body can be accessed from the ribbon menu of the Body category in a subsystem. The body can be created by selecting multiple rigid bodies as shown in the figure and table below.

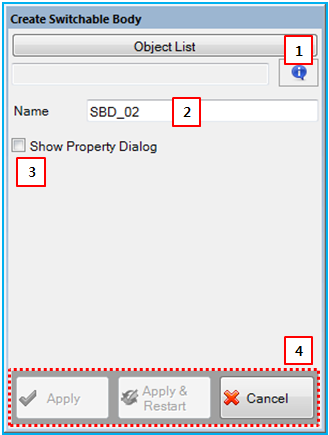

Figure 3.107: Description of parameters in the Create Switchable Body dialog
| Parameter | Description |
| 1. Object List | Use to set rigid bodies by using the multi-objects picker. |
| 2. Name | Use to set the name of the body. |
| 3. Show Property dialog | Use to open the properties dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
