Geometry properties such as the base and action geometries are defined in the Multi-Curve to Multi-Curve Contact creation dialog as shown in the figure and table below. When creating the contact, the appropriate Curveset is required.

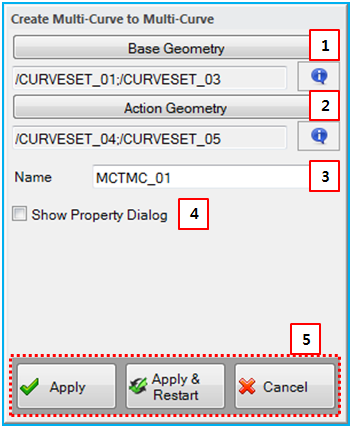

Figure 7.32: Description of parameters in the Multi-Curve to Multi-Curve Contact creation dialog
| Parameter | Description |
| 1. Base Geometry | Use to set the contact surface on the base body using the MultiGeneral Picker. The Curveset is available in the picker. |
| 2. Action Geometry | Use to set the contact surface on the action body using the MultiGeneral Picker. The Curveset is available in the picker. |
| 3. Name | Use to set the name of the Multi-Curve to Multi-Curve Contact. |
| 4. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
