The Faceset feature can be accessed from the Body category on the ribbon menu in a subsystem or part. A single Faceset can be created by selecting faces on a body using the MultiFace Picker as shown in the figure below and in the following table.

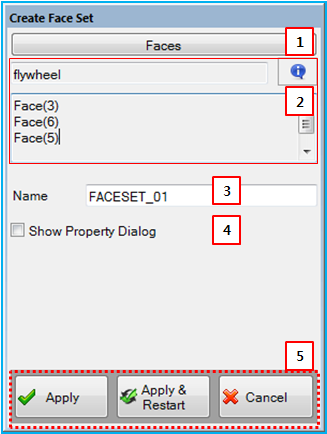

Figure 3.59: Description of parameters in the Create Face Set dialog
| Parameter | Description |
| 1. Faces | Use to set the faces of the Faceset by using the MultiFace Picker. The faces must belong to the same body. |
| 2. Information | Use to display the name of body to which the Faceset belongs and the names of faces in the Faceset. |
| 3. Name | Use to set the name of the Faceset. |
| 4. Show Property Dialog | Use to open the Properties dialog after finishing the creation operation. |
| 5. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
