Since a Nodeset is required in the Concentrated Load creation dialog, the Nodeset must be created before creating the force. Parameters in the dialog are as shown in the figure and table below.

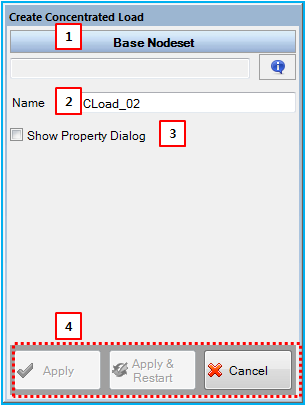

Figure 6.40: Description of parameters in the Concentrated Load creation dialog
| Parameter | Description |
| 1. Base Nodeset | Use to select a Nodeset using the General Picker. Force and torque are applied on the nodes belongs to the Nodeset. |
| 2. Name | Use to set the name of the Concentrated Load. |
| 3. Show Property Dialog | Use to open the property dialog after finishing the creation operation. |
| 4. Control buttons | If all necessary parameters are set, these buttons are enabled. For more information about the control buttons, refer to Entity Creation. |
